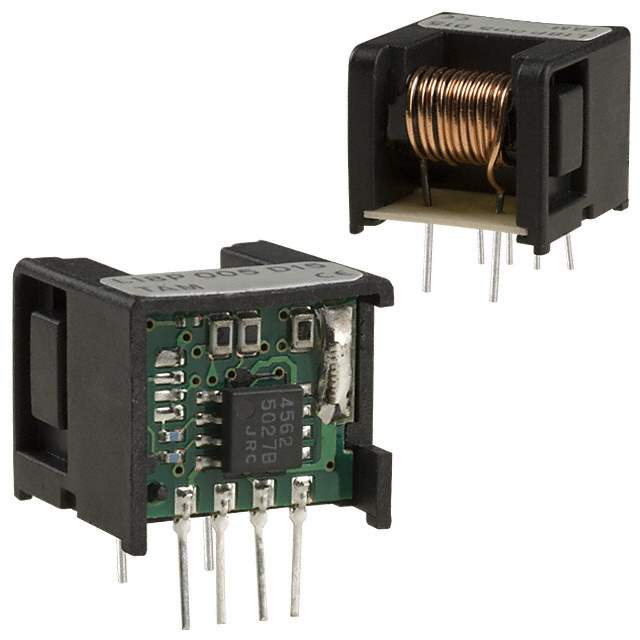

L18P005D15 Real Image
Same model may have multiple batches, images only for reference.

L18P005D15

Part No L18P005D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 5A AC/DC
Datasheet
L18P005D15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Tamura
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 5A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC to 100kHz
Linearity ±1%
Supply Voltage - Operating ±15V
Response Time 5μs
Current - Supply (Max) 15mA
Temperature Range - Operating -30°C to 80°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module
Win Source Part Number 205911-L18P005D15
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L18P005D15 CAD Model

Description

The Tamura L18P005D15 is a hall effect, open loop sensor type with ratiometric and voltage output.

  • Sensor Type: hall effect, open loop sensor type
  • Output: ratiometric and voltage
  • Polarization: bidirectional
  • Channel: single channel
  • Response time: 5μs
  • Supply and demand status: limited
  • Design: AC/DC measurement
  • Sensitivity: -
  • Current sensing: 5A
  • Linearity: ±1%
  • Accuracy: -
  • ECCN: EAR99 compliant
  • Temperature range: -30°C to 80°C
