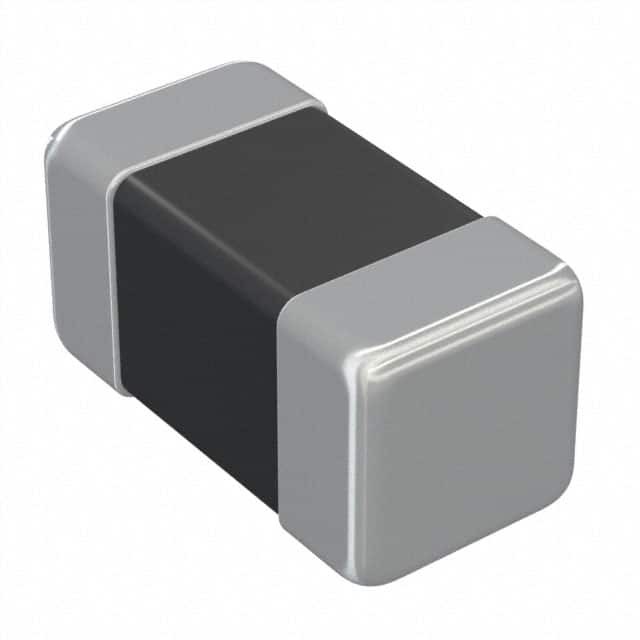

Same model may have multiple batches, images only for reference.
TMK105B7223KV-F
Same model may have multiple batches, images only for reference.

TMK105B7223KV-F

Part No TMK105B7223KV-F
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 25V X7R 0402
Datasheet
TMK105B7223KV-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Taiyo Yuden
Series M
Package Tape & Reel
Product Status Not For New Designs
Capacitance 0.022 µF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications SMPS Filtering
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
Base Product Number TMK105B
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 846400-TMK105B7223KV-F
Ultra Librarian 3D Model Ultra Librarian TMK105B7223KV-F CAD Model

Description

The 846400-TMK105B7223KV-F is a ceramic capacitor from Taiyo Yuden's M series. It has a capacitance of 0.022 µF with a tolerance of ±10%.

  • Voltage Rating: 25V
  • Temperature Coefficient: X7R
  • Application: SMPS Filtering
  • Package Size: 0402 (1005 Metric)
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Mounting Type: Surface Mountable
  • Package: Tape & Reel
  • Standard Package: 10,000 pcs
