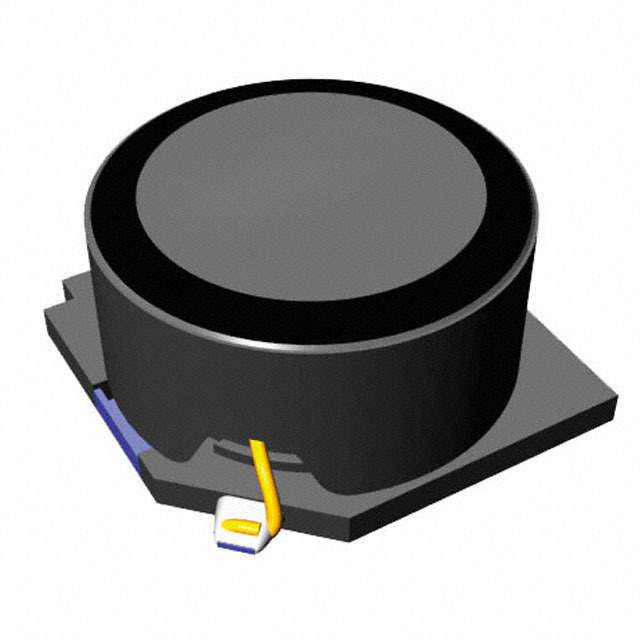

NS12555T220MNV Real Image
Same model may have multiple batches, images only for reference.

NS12555T220MNV

Part No NS12555T220MNV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description SMD Power Inductors for Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NS
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 3.81A
Current - Saturation 3.2A
Shielding Shielded
DC Resistance (DCR) 35.64 mOhm Max
Frequency - Self Resonant 13.2MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum) 0.230" (5.85mm)
Win Source Part Number 1232193-NS12555T220MNV
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Family Name NS
ECCN EAR99
Estimated EOL Date 2026
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian NS12555T220MNV CAD Model

Description

The NS12555T220MNV is a wirewound type inductor that is manufactured by Taiyo Yuden.

  • Inductance: 22μH
  • Current Rating: 3.81A
  • Tolerance: ±20%
  • Shielded: Yes
  • DC Resistance (DCR): 35.64 mOhm Max
  • Height - Seated (Maximum): 0.230" (5.85mm)
  • Manufacturer: Taiyo Yuden
