Same model may have multiple batches, images only for reference.

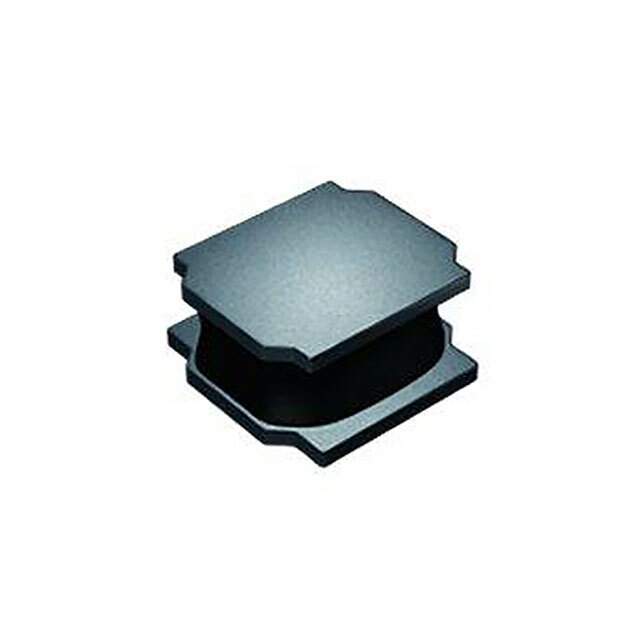

NRV2012T4R7MGF Real Image
Same model may have multiple batches, images only for reference.

NRV2012T4R7MGF

Part No NRV2012T4R7MGF
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 750MA 390 MOHM
Datasheet
NRV2012T4R7MGF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 750mA
Current - Saturation 1.1A
DC Resistance (DCR) 390 mOhm Max
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1083533-NRV2012T4R7MGF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian NRV2012T4R7MGF CAD Model

Description

The NRV2012T4R7MGF from Taiyo Yuden is a wirewound inductor with a current rating of 750mA and inductance of 4.7μH.

  • Inductance: 4.7μH
  • Current Rating: 750mA
  • Core Material: Ferrite
  • Height: 0.047" (1.20mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 1.1A
  • DC Resistance (DCR): 390 mOhm Max
  • Application: Inductor, Coil, and Choke
  • Operating Temperature Range: -25°C to 120°C
  • Packaging: Reel
  • Quantity per Reel: 2,500
