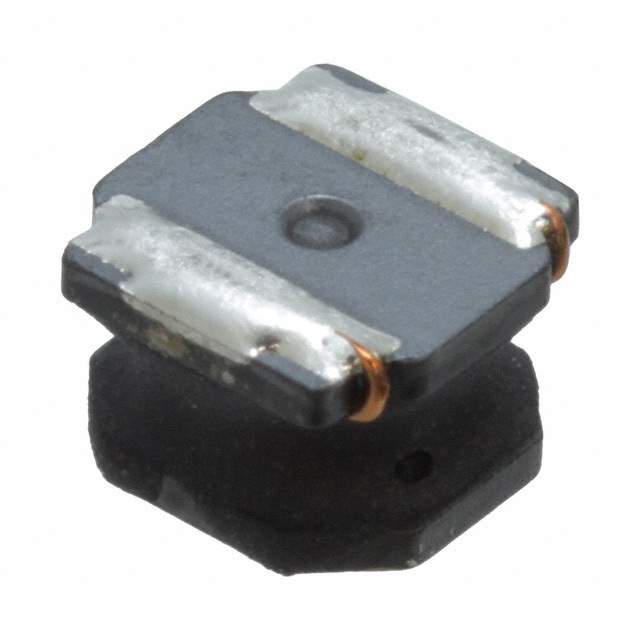

Same model may have multiple batches, images only for reference.

NRS6045T220MMGKV

Name: NRS6045T220MMGKV
Brand: Taiyo Yuden
SKU: 499873
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NRS6045T220MMGKV
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.6A 139.1 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22μH
Tolerance	±20%
Current Rating	1.6A
Current - Saturation	2A
DC Resistance (DCR)	139.1 mOhm Max
Frequency - Self Resonant	7MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.177" (4.50mm)
Win Source Part Number	1083520-NRS6045T220MMGKV
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1,500
Ultra Librarian 3D Model	Ultra Librarian NRS6045T220MMGKV CAD Model

Alternative Products

Description

The Taiyo Yuden NRS6045T220MMGKV is a wirewound shielded inductor that has an inductance of 22μH and a tolerance of ±20%.

Inductance: 22μH
Tolerance: ±20%
Current Rating: 1.6A
Current Saturation: 2A
Core Material: Ferrite
Maximum DC Resistance: 139.1mOhm
Operating Temperature: -40°C to 125°C
Height: 0.177" (4.50mm)
Package: Reel
Quantity: 1,500
Supply and Demand Status: Limited
