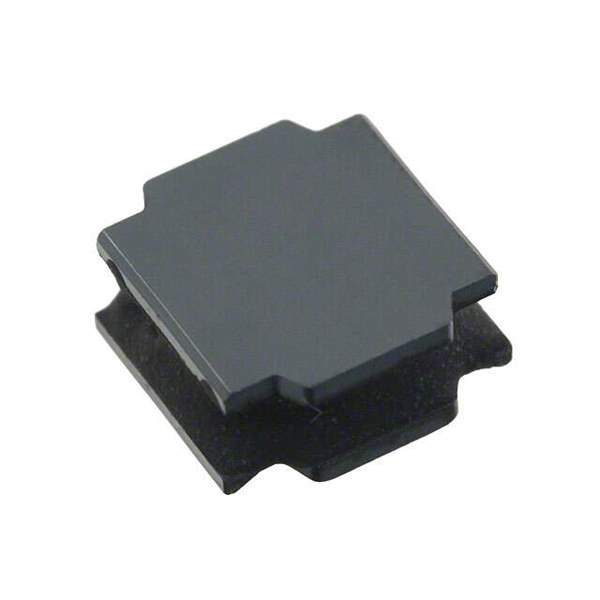

NRS6012T4R7MMGGV Real Image
Same model may have multiple batches, images only for reference.

NRS6012T4R7MMGGV

Part No NRS6012T4R7MMGGV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.55A 150 MOHM / Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 1.55A 0.15Ohm DCR 2424 Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.55A
Current - Saturation 1.6A
Shielding Shielded
DC Resistance (DCR) 150 mOhm Max
Frequency - Self Resonant 36MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 790804-NRS6012T4R7MMGGV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name NR
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian NRS6012T4R7MMGGV CAD Model

Description

The Taiyo Yuden NRS6012T4R7MMGGV is an inductor component that is part of the NR series.

  • Type: Wirewound
  • Shielding: Yes
  • Inductance: 4.7μH
  • Current Rating: 1.55A
  • Tolerance: ±20%
  • DC Resistance: 150 mOhm Max
  • Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Package: Reel
  • Mounting Type: SMD
  • Self-Resonant Frequency: 36MHz
  • Test Frequency: 100kHz
  • AEC-Q200 Rated: Yes
  • Estimated EOL Date: 2029
  • Supply and Demand Status: Balanced
  • Package Quantity: 1k pcs
