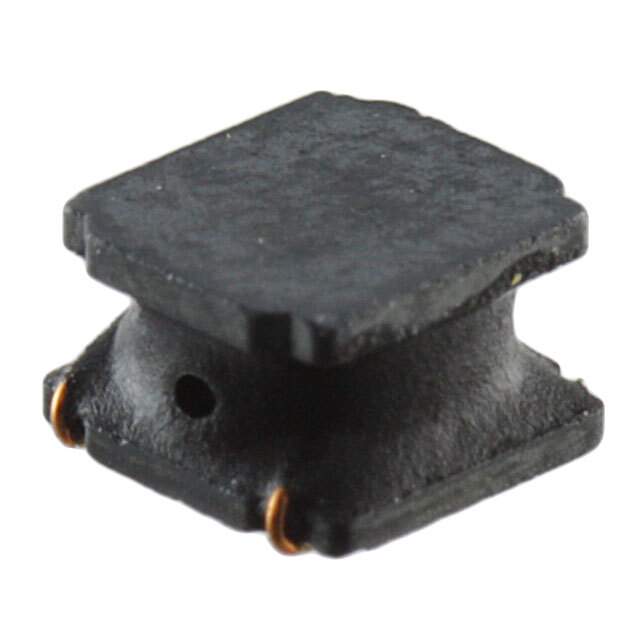

NRG4026T4R7M Real Image
Same model may have multiple batches, images only for reference.

NRG4026T4R7M

Part No NRG4026T4R7M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.6A 55 MOHM SMD
Datasheet
NRG4026T4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.6A
Current - Saturation 1.45A
DC Resistance (DCR) 55 mOhm
Frequency - Self Resonant 46MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.102" (2.60mm)
Win Source Part Number 045359-NRG4026T4R7M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NRG4026T4R7M CAD Model

Description

The 045359-NRG4026T4R7M from Taiyo Yuden is a wirewound inductor with an inductance of 4.7μH and a current rating of 1.6A.

  • Inductance: 4.7μH
  • Current Rating: 1.6A
  • Tolerance: +/-20%
  • DC Resistance: 55mOhm
  • Saturation Current: 1.45A
  • Operating Temperature Range: -25C to 120C
  • Height: 0.102 inches
  • Design Status: Not recommended for new designs
