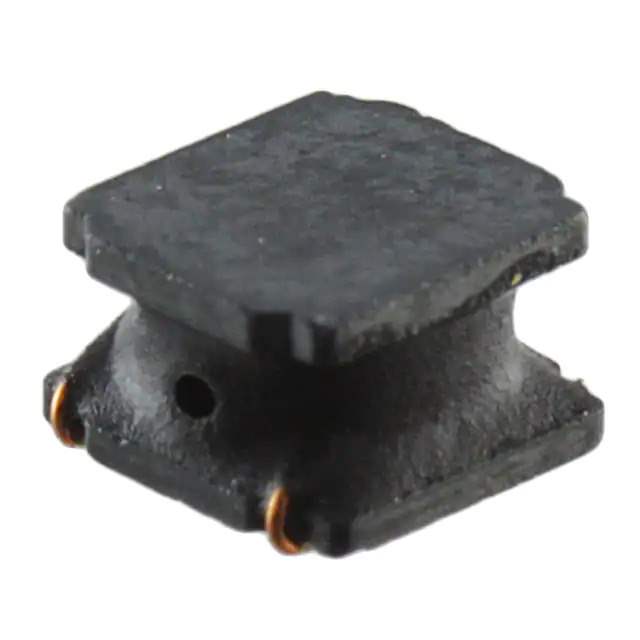

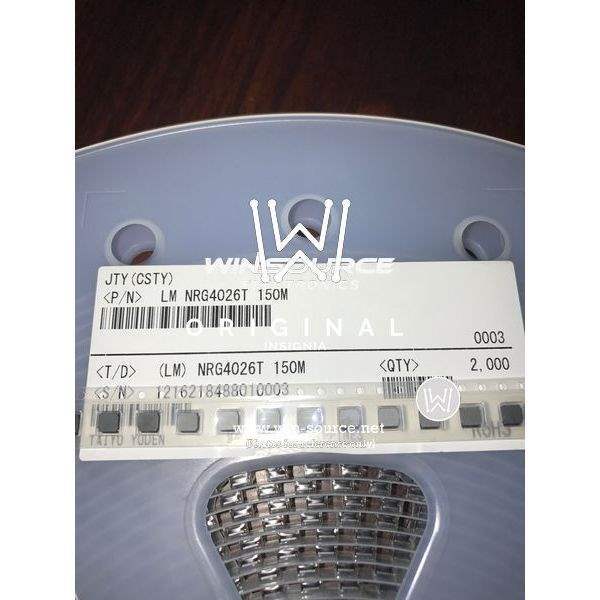

NRG4026T150M Taiyo Yuden NRG4026T150M Real Image NRG4026T150M label picture 2
Same model may have multiple batches, images only for reference.
NRG4026T150M Taiyo Yuden NRG4026T150M Real Image NRG4026T150M label picture 2
NRG4026T150M Taiyo Yuden NRG4026T150M Real Image NRG4026T150M label picture 2
Same model may have multiple batches, images only for reference.

NRG4026T150M

Part No NRG4026T150M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 15UH 1.1A 110 MOHM SMD / 15 μH Shielded Drum Core, Wirewound Inductor 1.1 A 110mOhm Nonstandard
Datasheet
NRG4026T150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, G Type
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 110mOhm
Frequency - Self Resonant 19MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.102" (2.60mm)
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 649387-NRG4026T150M
Ultra Librarian 3D Model Ultra Librarian NRG4026T150M CAD Model

Description

The 649387-NRG4026T150M is a drum core, wirewound inductor from Taiyo Yuden's NR, G Type series.

  • Series: NR, G Type
  • Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Size / Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 15 μH
  • Tolerance: ±20%
  • Height - Seated (Max): 0.102" (2.60mm)
  • DC Resistance (DCR): 110mOhm
  • Operating Temperature: -25°C ~ 120°C
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
  • Current: 1.1A
  • Saturation Current (Isat): 900mA
