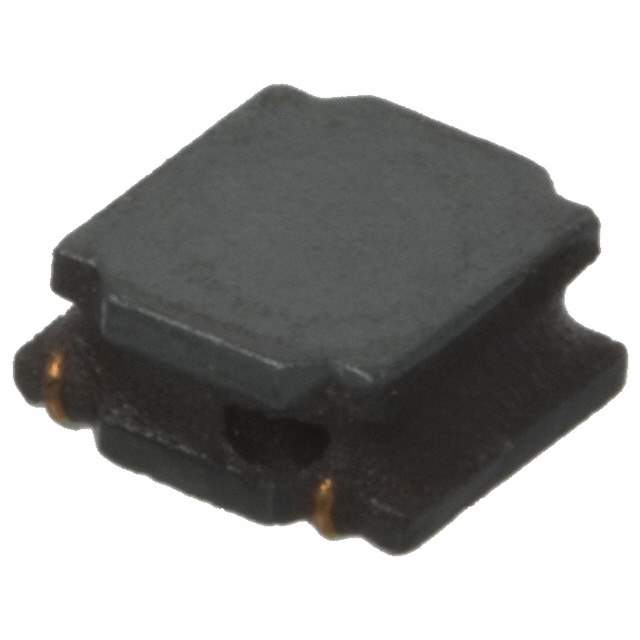

NR3015T6R8M Real Image
Same model may have multiple batches, images only for reference.

NR3015T6R8M

Part No NR3015T6R8M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 6.8UH 880MA 192 MOHM
Datasheet
NR3015T6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±20%
Current Rating 880mA
Current - Saturation 870mA
DC Resistance (DCR) 192 mOhm Max
Frequency - Self Resonant 36MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 025667-NR3015T6R8M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NR3015T6R8M CAD Model

Description

Taiyo Yuden 025667-NR3015T6R8M wirewound inductor is a ferrite core inductor with a 6.8μH inductance and a current rating of 880mA. This SMD (SMT) mounting inductor has a tolerance of ±20% and a DC resistance (DCR) of 192 mOhm Max.

  • Inductance: 6.8μH
  • Current Rating: 880mA
  • Core Material: Ferrite
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 192 mOhm Max
  • Frequency Self-Resonant: 36MHz
  • Frequency Test: 100kHz
  • Height: 0.059" (1.50mm)
  • Operating Temperature: -25°C to 120°C
  • Packaging: Reel - TR
  • Quantity per Package: 2k pcs
  • Application: Inductor, coil, and choke applications
