Same model may have multiple batches, images only for reference.

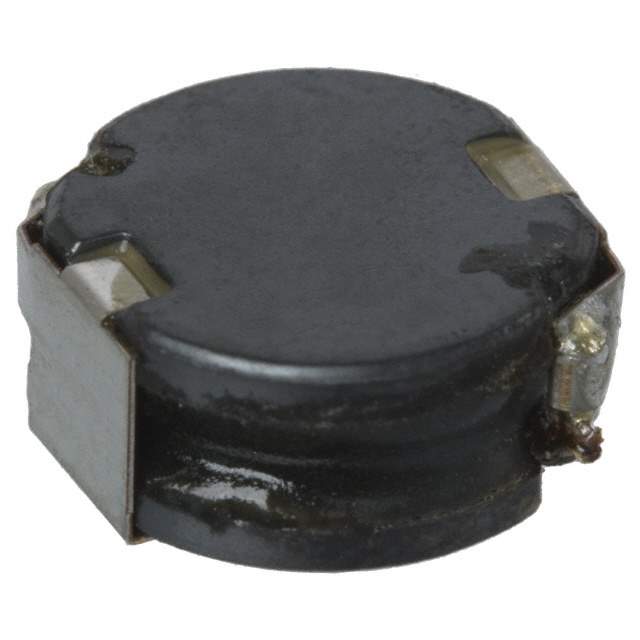

NR10050T150M Real Image
Same model may have multiple batches, images only for reference.

NR10050T150M

Part No NR10050T150M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 15UH 3.2A 45.5MOHM SMD / 15 µH Unshielded Drum Core, Wirewound Inductor 3.2 A 45.5mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series NR
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 3.6A
Shielding Unshielded
DC Resistance (DCR) 45.5mOhm Max
Frequency - Self Resonant 11MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max) 0.197" (5.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 587-5929-2,LM NR 10050T 150M,NR10050T150M-ND,587-5929-1,587-5929-6,LM NR10050T150M
Standard Package 500
Win Source Part Number 1186372-NR10050T150M
Ultra Librarian 3D Model Ultra Librarian NR10050T150M CAD Model

Description

This fixed inductor from Taiyo Yuden has a Win Source Part Number of 1186372-NR10050T150M.

  • Core Type: Drum core, wirewound
  • Package: Tape & reel
  • Shielding: Unshielded
  • Inductance: 15 μH
  • Height: 0.197" (5.00mm)
  • Standard Package: 500
  • Mountable: Yes
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Frequency of Self-Resonance: 11MHz
  • DC Resistance: 45.5mOhm Max
  • Temperature Range: -25 to 105 °C
  • Current Rating: 3.2 A
  • Current Saturation: 3.6A
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
