Same model may have multiple batches, images only for reference.

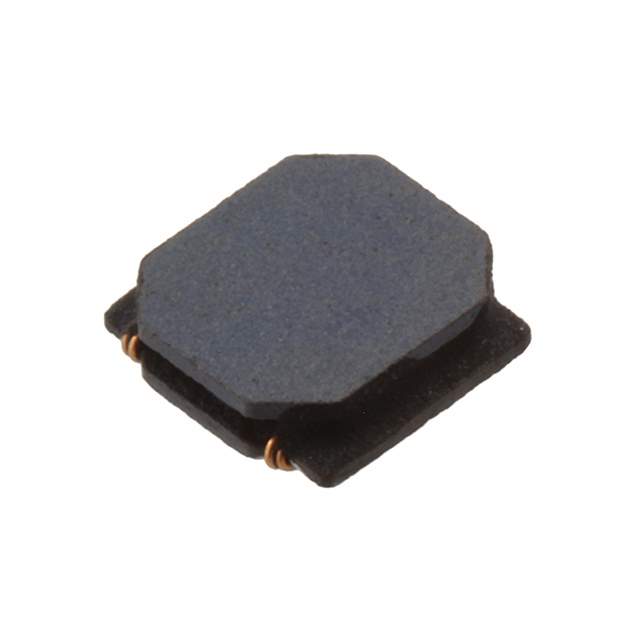

MDWK4040T1R5MM Real Image
Same model may have multiple batches, images only for reference.

MDWK4040T1R5MM

Part No MDWK4040T1R5MM
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 4.1A 41 MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 4.1 A 41mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Taiyo Yuden
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 9.4A
Shielding Shielded
DC Resistance (DCR) 41mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 587-4448-6,587-4448-2,587-4448-1,LM MDWK4040T1R5MM
Standard Package 700
Win Source Part Number 1327650-MDWK4040T1R5MM
Ultra Librarian 3D Model Ultra Librarian MDWK4040T1R5MM CAD Model

Description

The MDWK4040T1R5MM is a shielded fixed inductor with a drum core wirewound type from Taiyo Yuden.

  • Size: 0.157 inches in length and width
  • Inductance: 1.5 microhenries
  • Maximum Seated Height: 0.079 inches
  • Standard Package: 700
  • Mounting: Surface Mount
  • Tolerance: ±20 percent
  • Material Core: Metal
  • Current Rating: 4.1 amps
  • DC Resistance: 41 milliohms maximum
  • Compliance: ROHS3
