Same model may have multiple batches, images only for reference.

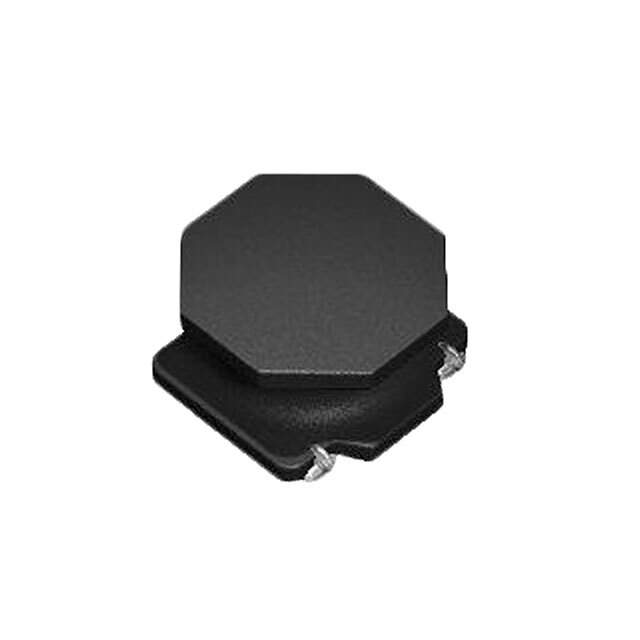

MDPK5050T4R7MM Real Image
Same model may have multiple batches, images only for reference.

MDPK5050T4R7MM

Part No MDPK5050T4R7MM
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.5A 102MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 2.5 A 102mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 102mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 587-6087-6,LM MDPK5050T4R7MM,587-6087-1,587-6087-2,MDPK5050T4R7MM-ND
Standard Package 1,000
Win Source Part Number 1078437-MDPK5050T4R7MM
Ultra Librarian 3D Model Ultra Librarian MDPK5050T4R7MM CAD Model

Description

The MCOIL™ MD series is a drum core, wirewound inductor that comes in a tape and reel package.

  • Type: Drum core, wirewound, shielded inductor
  • Package: Tape and reel
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Height (seated): 0.055 inches
  • DC Resistance (DCR): 102mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Core Material: Metal
  • Package/Case: Non-standard
  • Current Rating: 2.5A
  • Inductance Frequency Test: 1 MHz
  • Alternative Part: SPM5015T-4R7M-LR
  • Manufacturer: Taiyo Yuden
  • Other Names: LM MDPK5050T4R7MM, 587-6087-1, 587-6087-2, MDPK5050T4R7MM-ND
