Same model may have multiple batches, images only for reference.

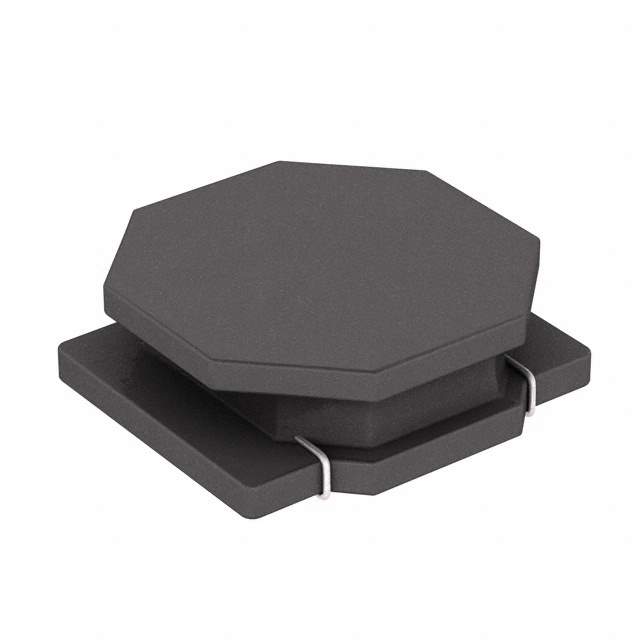

MDMK3030T1R5MM Real Image
Same model may have multiple batches, images only for reference.

MDMK3030T1R5MM

Part No MDMK3030T1R5MM
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 2.5A 74 MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 2.5 A 74mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.4A
Shielding Shielded
DC Resistance (DCR) 74mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names LM MDMK3030T1R5MM,587-4119-2,2266-MDMK3030T1R5MM
Standard Package 2,000
Win Source Part Number 1078422-MDMK3030T1R5MM
Ultra Librarian 3D Model Ultra Librarian MDMK3030T1R5MM CAD Model

Description

The MDMK3030T1R5MM is a drum core, wirewound fixed inductor manufactured by Taiyo Yuden. It has a unique feature of a metal core and a shielded shielding.

  • Features: Metal Core, Shielded
  • Alternative Parts: VLS252012HBX-1R5M-1, DFE252010P-1R5M=P2, DFE252012F-1R5M=P2, MDMK4040T1R5MM, VLS252012CX-1R5MMDMK3030T1R5MM
