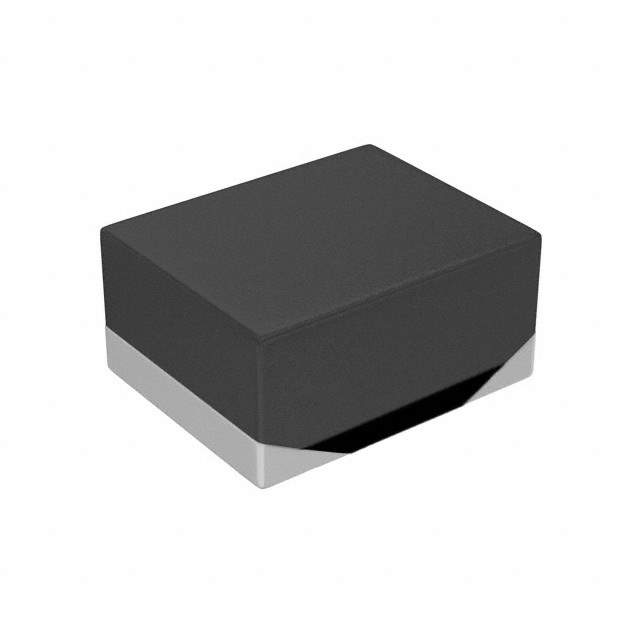

MAKK2016HR68M Real Image
Same model may have multiple batches, images only for reference.

MAKK2016HR68M

Part No MAKK2016HR68M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 680NH 2.7A 50 MOHM SMD / 680 nH Shielded Drum Core, Wirewound Inductor 2.7 A 50mOhm Max 0806 (2016 Metric)
Datasheet
MAKK2016HR68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MA, H Type
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 587-4383-2,587-4383-6,LQ MAKK2016HR68M,587-4383-1
Standard Package 3,000
Win Source Part Number 971145-MAKK2016HR68M
Ultra Librarian 3D Model Ultra Librarian MAKK2016HR68M CAD Model

Description

The Taiyo Yuden MCOIL™, MA, H Type fixed inductor is a high-performance component designed for surface mount applications.

  • Inductance: 680nH
  • Maximum Height: 0.039 inches
  • Shielding: Package
  • DC Resistance: 50mOhm.7A
  • Inductance Frequency Test: 2MHz
  • Package Length: 0.079 inches
  • Package Width: 0.063 inches
  • Product Status: Obsolete
  • ECCN: EAR99
