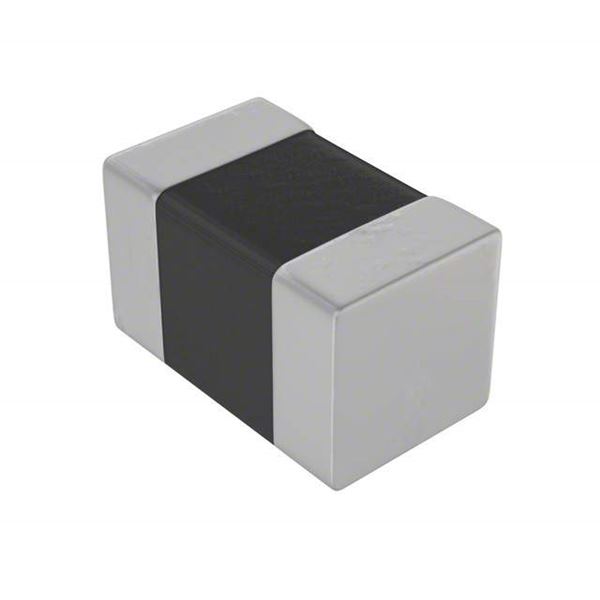

LQLB2518T681M Taiyo Yuden
Same model may have multiple batches, images only for reference.

LQLB2518T681M

Part No LQLB2518T681M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 680UH 20MA 22.1 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 680μH
Tolerance ±20%
Current Rating 20mA
DC Resistance (DCR) 22.1 Ohm Max
Frequency - Self Resonant 3MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 796kHz
Mounting SMD (SMT)
Dimension 0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 206654-LQLB2518T681M
Ultra Librarian 3D Model Ultra Librarian LQLB2518T681M CAD Model

Description

The Taiyo Yuden 206654-LQLB2518T681M is a wirewound inductor with an inductance of 680μH and a current rating of 20mA. This SMD (SMT) mounted inductor has a tolerance of ±20% and a DC resistance (DCR) of 22.1 Ohm Max. It has a self-resonant frequency of 3MHz and a test frequency of 796kHz. The operating temperature range for this inductor is -40°C to 105°C. The dimension of this inductor is 0.098" L x 0.071" W (2.50mm x 1.80mm). It is ideal for use in inductors, coils, and chokes.
