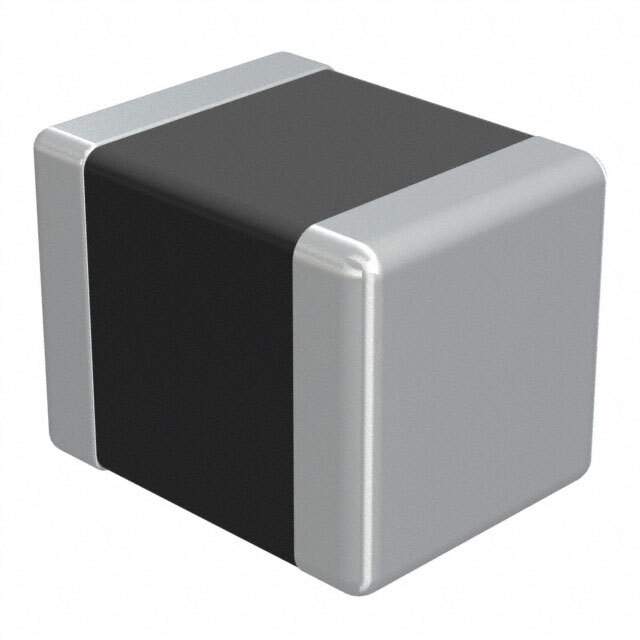

LBC3225T1R0MR Real Image
Same model may have multiple batches, images only for reference.

LBC3225T1R0MR

Part No LBC3225T1R0MR
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1UH 1.1A 55 MOHM SMD / Inductor General Purpose Chip Wirewound 1uH 20% 100KHz Ferrite 1.1A 0.0715Ohm DCR 1210 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series LB
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±20%
Current Rating 1.1A
Shielding Unshielded
DC Resistance (DCR) 55 mOhm
Frequency - Self Resonant 250MHz
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package 1210
Manufacturer Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.106" (2.70mm)
Win Source Part Number 770918-LBC3225T1R0MR
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name LB
Introduction Date February 10, 2012
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LBC3225T1R0MR CAD Model

Description

The Taiyo Yuden LB series inductor is a wirewound type with an inductance of 1μH and a tolerance of ±20%.

  • Inductance: 1μH
  • Tolerance: ±20%
  • Current Rating: 1.1A
  • Shielding: Unshielded
  • Mounting Type: SMD
  • Package: 1210
  • DCR: 55 mOhm
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Popularity: Medium
  • Supply/Demand Status: Limited
  • Alternative Parts: LPD3015-102MTD, LPD3015-102MTB, LPD3015-102MTC, LPD3015-102MLC
  • ECCN: EAR99
  • EOL Date: 2026
  • Compliance: Halogen-free
