Same model may have multiple batches, images only for reference.

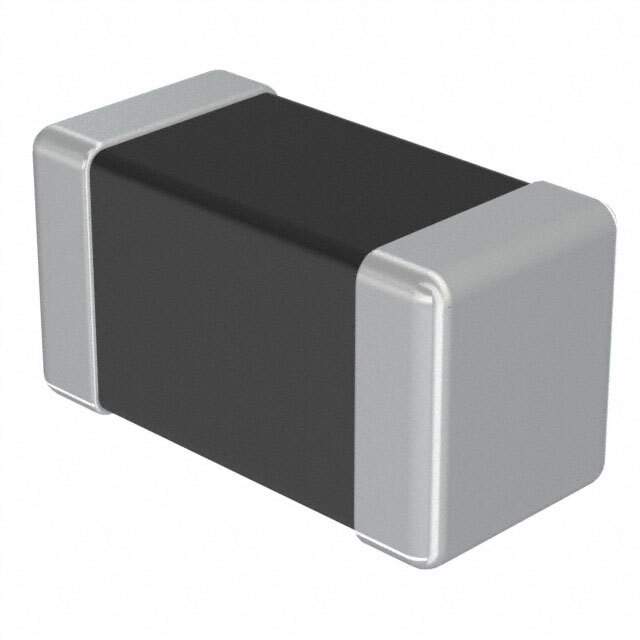

HKQ04021N6S-T Real Image
Same model may have multiple batches, images only for reference.

HKQ04021N6S-T

Part No HKQ04021N6S-T
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.6NH 320MA 190MOHM SM / 1.6 nH Unshielded Multilayer Inductor 320 mA 190mOhm Max 01005 (0402 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series HK, Q Type
Package Tape & Reel (TR)
Product Status Obsolete
Type Multilayer
Material - Core Ceramic
Inductance 1.6 nH
Tolerance ±0.3nH
Current Rating (Amps) 320 mA
Shielding Unshielded
DC Resistance (DCR) 190mOhm Max
Q @ Freq 10 @ 500MHz
Frequency - Self Resonant 10GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting SMD (SMT)
Package / Case 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.23mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names HKQ04021N6ST,LG HKQ0402 1N6S-T
Standard Package 20,000
Win Source Part Number 1120280-HKQ04021N6S-T
Ultra Librarian 3D Model Ultra Librarian HKQ04021N6S-T CAD Model

Description

The HKQ04021N6S-T is a multilayer fixed inductor from Taiyo Yuden's HK, Q Type series.

  • Inductance: 1.6nH
  • Tolerance: ±0.3nH
  • Q @ Freq: 10 @ 500MHz
  • Frequency Self-Resonant: 10GHz
  • DC Resistance (DCR): 190mOhm Max
  • Current Rating (Amps): 320mA
  • Package: Tape and Reel
  • Standard Package: 20,000
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Material: Ceramic
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Height-Seated (Max): 0.009" (0.23mm)
  • Package/Case Size: 01005 (0402 Metric)
  • Status: Obsolete
