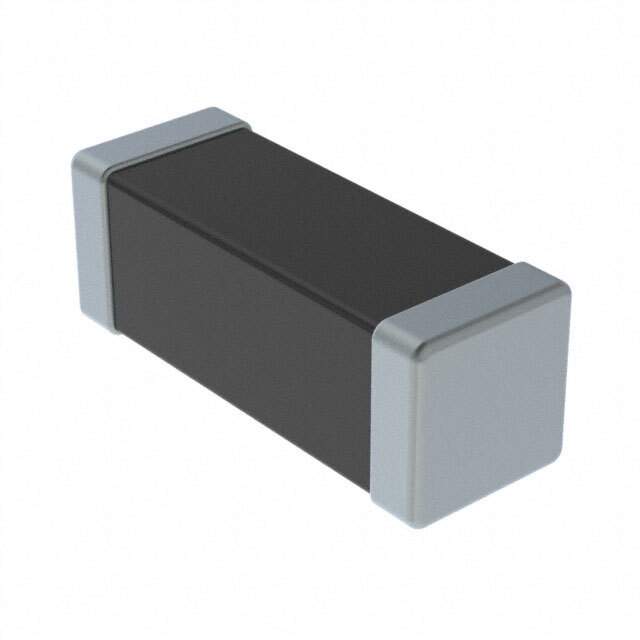

FBMJ4516HM560NTV Real Image
Same model may have multiple batches, images only for reference.

FBMJ4516HM560NTV

Part No FBMJ4516HM560NTV
Manufacturer Taiyo Yuden
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 56 OHM 1806 1LN / 56 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1806 (4516 Metric) 6A 7mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Taiyo Yuden
Series FB
Package Tape & Reel
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 56 Ohms @ 100 MHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 7mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Package / Case 1806 (4516 Metric)
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.177" L x 0.063" W (4.50mm x 1.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 587-3858-6,587-3858-2,FC FB MJ4516HM560NTV,587-3858-1
Standard Package 2,000
Win Source Part Number 1063095-FBMJ4516HM560NTV
Ultra Librarian 3D Model Ultra Librarian FBMJ4516HM560NTV CAD Model

Description

The FBMJ4516HM560NTV from Taiyo Yuden is a ferrite bead filter with a power line filter type. It has a maximum current rating of 6A and a DC resistance (DCR) of 7mOhm. The impedance at frequency is 56 Ohms @ 100 MHz. This component has a package/case of 1806 (4516 Metric) and is rated AEC-Q200. It has a height (max) of 0.051 inches (1.30mm) and is mounted using SMD (SMT). The temperature range for operating is from -40°C to 125°C.

  • Filter Type: Power Line Filter
  • Maximum Current Rating: 6A
  • DC Resistance (DCR): 7mOhm
  • Impedance @ Frequency: 56 Ohms @ 100 MHz
  • Package/Case: 1806 (4516 Metric)
  • AEC-Q200: Yes
  • Height (Max): 0.051 inches (1.30mm)
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 125°C
