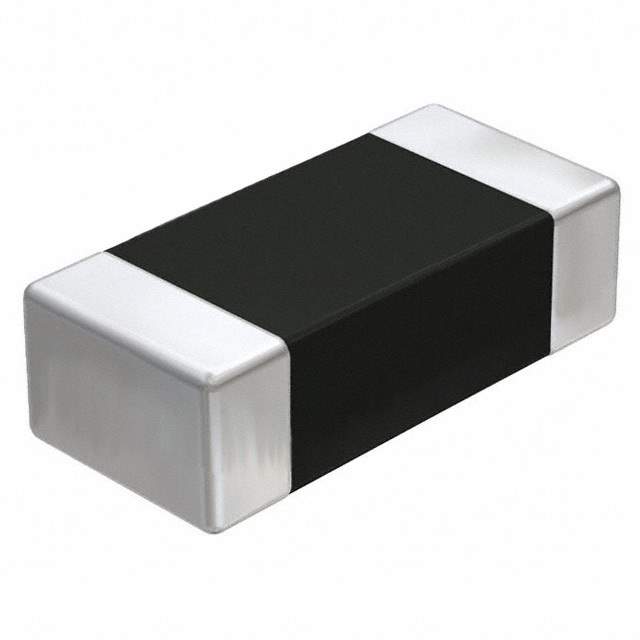

The EMK107SD682JA-T is a ceramic capacitor manufactured by Taiyo Yuden. It's designed for general-purpose applications where a stable and reliable capacitance is required. These capacitors are known for their small size, high capacitance values, and excellent performance characteristics.

Applications

• Consumer Electronics: Used in smartphones, tablets, and other portable devices.
• Automotive Electronics: Employed in various automotive control and sensor systems.
• Industrial Equipment: Integrated into industrial control systems and power supplies.
• Medical Devices: Utilized in medical instruments and monitoring equipment.
• Power Supplies: Used for filtering and smoothing in power supply circuits.

Features

• High Capacitance: Offers a capacitance value of 6800pF (6.8nF).
• Small Size: Compact design allows for high-density mounting on PCBs.
• Temperature Stability: Excellent capacitance stability over a wide temperature range.
• Low ESR: Low Equivalent Series Resistance minimizes power loss.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directive.

Benefits

• Reliable Performance: Ensures stable operation in various environmental conditions.
• Space Saving: Allows for miniaturization of electronic devices.
• Improved Circuit Efficiency: Low ESR reduces power dissipation, leading to higher efficiency.
• Environmental Compliance: Meets environmental regulations for hazardous substances.
• Long Lifespan: Ceramic construction provides a long operating life.

Additional Details

The EMK107SD682JA-T has a voltage rating of 50V. It features a X5R dielectric, which provides good temperature stability, with a capacitance variation of ±15% over the operating temperature range of -55°C to +85°C. The termination is lead-free and suitable for reflow soldering. The case size is 0603 (1608 metric). This capacitor is ideal for decoupling, filtering, and bypass applications in a wide range of electronic circuits.
