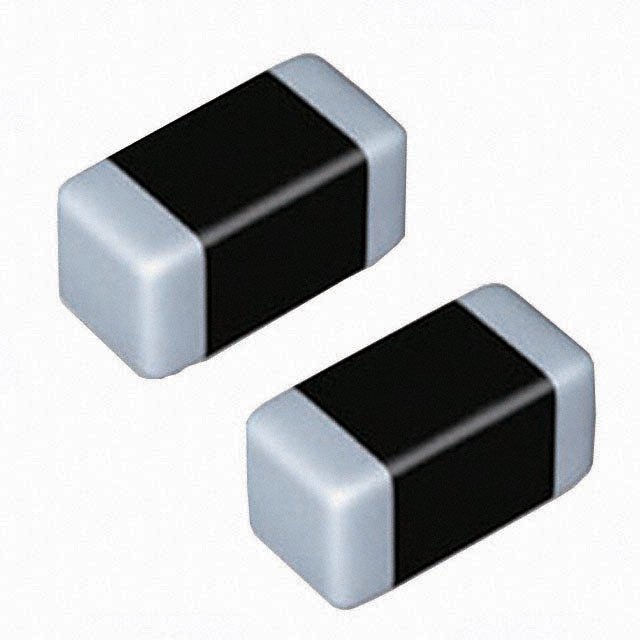

CBC2012T4R7M Taiyo Yuden
Same model may have multiple batches, images only for reference.

CBC2012T4R7M

Part No CBC2012T4R7M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 520MA 650 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 520mA
Current - Saturation 360mA
DC Resistance (DCR) 650 mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.057" (1.45mm)
Win Source Part Number 012682-CBC2012T4R7M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CBC2012T4R7M CAD Model

Description

Features and Benefits

  • Compact size: 2.0mm x 1.2mm x 1.2mm
  • High current handling up to 200mA
  • Low DC resistance for increased power efficiency
  • Stable performance across a wide temperature range

Applications

  • DC-DC converters
  • Smartphones and mobile devices
  • Automotive electronic systems
  • Industrial power supplies

The CBC2012T4R7M is a versatile chip inductor designed for modern electronic applications requiring compact components with high efficiency. Its small form factor makes it ideal for space-constrained devices, while its high current capacity and low DC resistance ensure minimal power loss.
