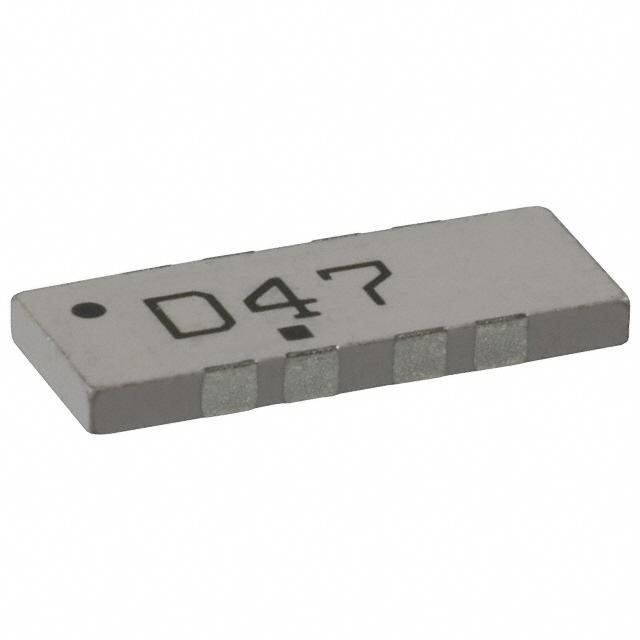

AH104F2450S1-T Taiyo Yuden
Same model may have multiple batches, images only for reference.

AH104F2450S1-T

Part No AH104F2450S1-T
Manufacturer Taiyo Yuden
Catalog RF Antennas
Description ANT BLUETOOTH W-LAN ZIGBEE WIMAX
Datasheet
AH104F2450S1-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 3
Gain 1.7dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Applications Bluetooth, WLAN, Zigbee
Win Source Part Number 100308-AH104F2450S1-T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian AH104F2450S1-T CAD Model

Description

AH104F2450S1-T RF Transistor

The AH104F2450S1-T transistor is ideal for RF amplification tasks, offering superior performance and reliability.

Features and Benefits

  • Efficient Performance: Optimized for high efficiency.
  • Wide Frequency Response: Covers numerous RF applications.
  • Compact Design: Ideal for space-constrained setups.

Applications and Projects

  • Wireless Infrastructure Systems
  • Microwave Communications
  • Industrial RF Tools
