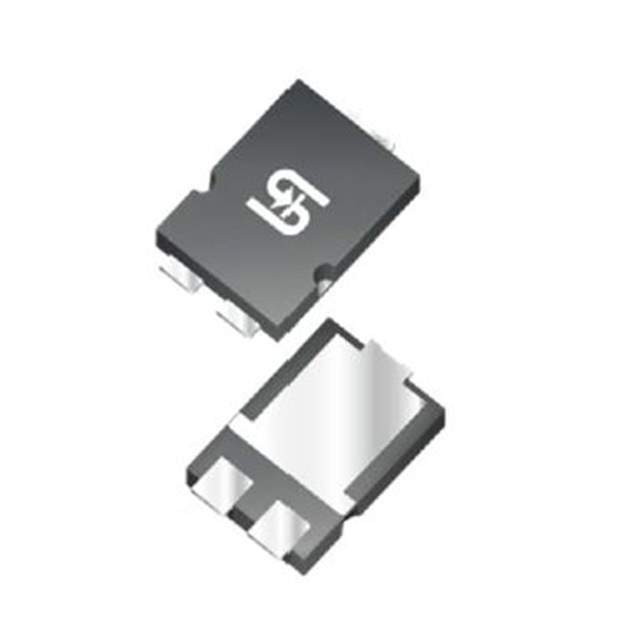

TSPB20U80S Real Image TSPB20U80S Real Image1 TSPB20U80S Real Image2
Same model may have multiple batches, images only for reference.
TSPB20U80S Real Image TSPB20U80S Real Image1 TSPB20U80S Real Image2
TSPB20U80S Real Image TSPB20U80S Real Image1 TSPB20U80S Real Image2
Same model may have multiple batches, images only for reference.

TSPB20U80S

Part No TSPB20U80S
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 640 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 80 V
Mounting SMD (SMT)
Package / Case TO-277, 3-PowerDFN
Supplier Device Package SMPC4.0
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number TSPB20
Other Names TSPB20U80SS1GCT,TSPB20U80SS1GTR,TSPB20U80S S1GCT,1801-TSPB20U80STR,TSPB20U80S S1GDKR,TSPB20U80S S1G,TSPB20U80SS1GDKR,TSPB20U80SS1GDKR,TSPB20U80S S1GTR,TSPB20U80SS1GTR,TSPB20U80S S1GDKR,TSPB20U80S S1GCT,TSPB20U80SS1GCT,1801-TSPB20U80SCT,TSPB20U80S S1GTR,1801-TSPB20U80SDKR
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281968-TSPB20U80S
Ultra Librarian 3D Model Ultra Librarian TSPB20U80S CAD Model

Description

The TSPB20U80S is a Schottky diode with a fast recovery speed of less than 500ns and a maximum voltage of 80V.

  • Recovery Speed: Fast, less than 500ns
  • Maximum Voltage: 80V
  • Average Rectified Current: 20A
  • Forward Voltage: 640mV @ 20A
  • Reverse Leakage Current: 300μA @ 80V
  • Package: TO-277
  • Mounting Type: SMD technology
  • Operating Temperature Range: -55°C to 150°C
  • Capacitance: 0F
  • Manufacturer: Taiwan Semiconductor Corporation
