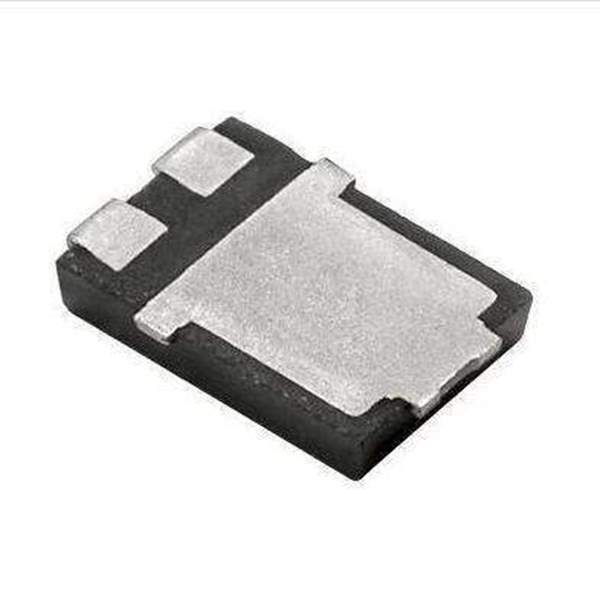

TSP20U60S S1G Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

TSP20U60S S1G

Part No TSP20U60S S1G
Manufacturer Taiwan Semiconductor
Catalog Schottky Diodes
Description Schottky Diodes & Rectifiers 20A, 60V, Trench Schottky
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Taiwan Semiconductor
Category Schottky Diodes
Mounting Style SMD/SMT
Package / Case TO-277A-3
Configuration Dual Cathode Common Anode
Technology Si
If - Forward Current 20 A
Vrrm - Repetitive Reverse Voltage 60 V
Vf - Forward Voltage 480 mV
Ifsm - Forward Surge Current 280 A
Ir - Reverse Current 500 uA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Ultra Librarian 3D Model Ultra Librarian TSP20U60S S1G CAD Model

Description

Schottky Diodes & Rectifiers 20A, 60V, Trench Schottky
