Same model may have multiple batches, images only for reference.

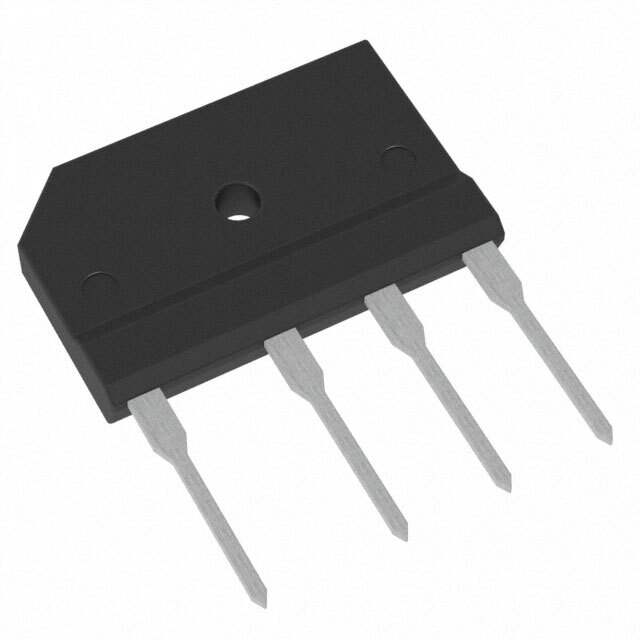

TS15P06G Real Image
Same model may have multiple batches, images only for reference.

TS15P06G

Part No TS15P06G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 15A TS-6P / Bridge Rectifier Single Phase Standard 800 V Through Hole TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS15P06
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691480-TS15P06G
Ultra Librarian 3D Model Ultra Librarian TS15P06G CAD Model

Description

The 691480-TS15P06G is a single-phase bridge rectifier diode designed for use in electronic circuits.

  • Maximum Forward Voltage: 1.1V @ a current of 15A
  • Maximum Reverse Voltage: 800V
  • Mounting Type: Through-hole
  • Package: 4-SIP, TS-6P
  • Operating Temperature: -55°C to 150°C
  • Technology: Standard
  • Manufacturer: Taiwan Semiconductor
  • Current Rating: 15A
  • Package Quantity: 15 pieces
  • Product Status: Active
  • REACH: Unaffected
