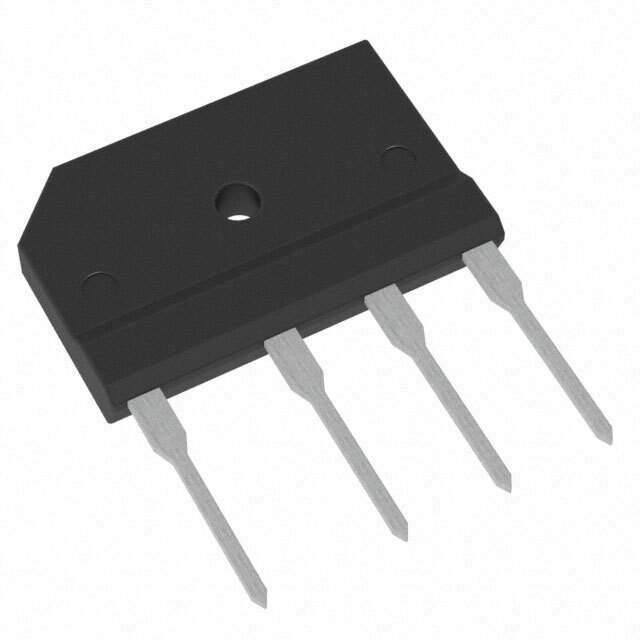

TS10P05G Real Image
Same model may have multiple batches, images only for reference.

TS10P05G

Part No TS10P05G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 10A TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS10P05
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691448-TS10P05G
Ultra Librarian 3D Model Ultra Librarian TS10P05G CAD Model

Description

The 691448-TS10P05G is a single-phase bridge rectifier diode designed for use in electronic circuits.

  • Maximum Forward Voltage: 1.1V @ 15A
  • Maximum Reverse Voltage: 600V
  • Mounting Type: Through-hole
  • Package: 4-SIP, TS-6P
  • Operating Temperature: -55°C to 150°C
  • Technology: Standard
  • Current Rating: 10A
  • Package Quantity: 15 pieces (Tube)
  • Status: Active
  • REACH: Unaffected
  • Manufacturer: Taiwan Semiconductor
