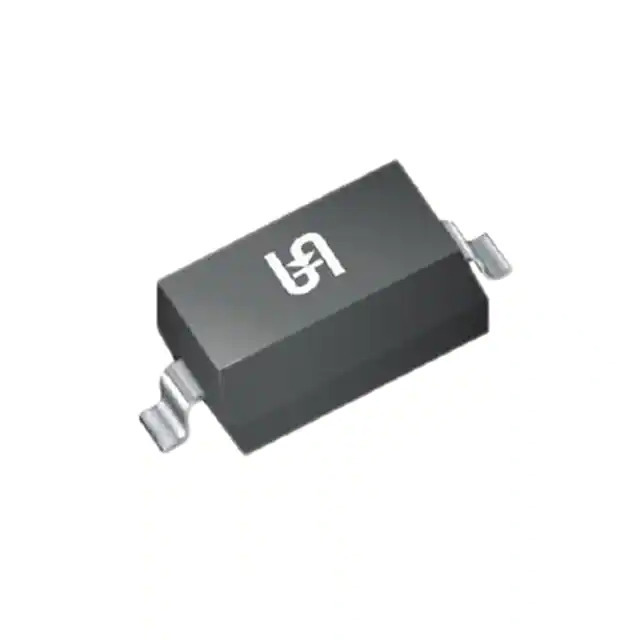

Same model may have multiple batches, images only for reference.
SS34LH Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SS34LH

Part No SS34LH
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description 3A, 40V, SCHOTTKY RECTIFIER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package Sub SMA
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SS34
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367068-SS34LH
Ultra Librarian 3D Model Ultra Librarian SS34LH CAD Model

Description

The SS34LH is a single rectifier diode from Taiwan Semiconductor Corporation.

  • Series: SS34
  • Application: Automotive
  • AEC-Q101: Yes
  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 3A
  • Recovery Speed: Fast (< 500ns)
  • Forward Voltage Drop: 500mV @ 3A
  • Package: SOD-123
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 125°C
