Same model may have multiple batches, images only for reference.

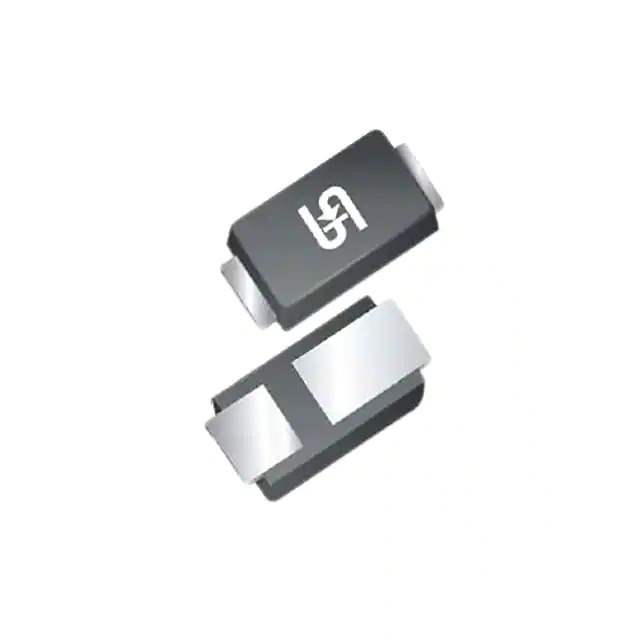

SS13M Real Image
Same model may have multiple batches, images only for reference.

SS13M

Part No SS13M
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A MICRO SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 30 V
Capacitance @ Vr, F 50pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, Flat Lead
Supplier Device Package Micro SMA
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SS13
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676242-SS13M
Ultra Librarian 3D Model Ultra Librarian SS13M CAD Model

Description

The SS13M is a single Schottky diode designed for rectification and power conversion applications.

  • Maximum Reverse Voltage: 30V
  • Forward Voltage Drop: 550mV @ Forward Current of 1A
  • Reverse Leakage Current: 5μA @ Maximum Reverse Voltage
  • Mounting Type: Surface Mountable
  • Operating Temperature Range: -55°C to 150°C
  • Capacitance: 50pF @ 4V and 1MHz
