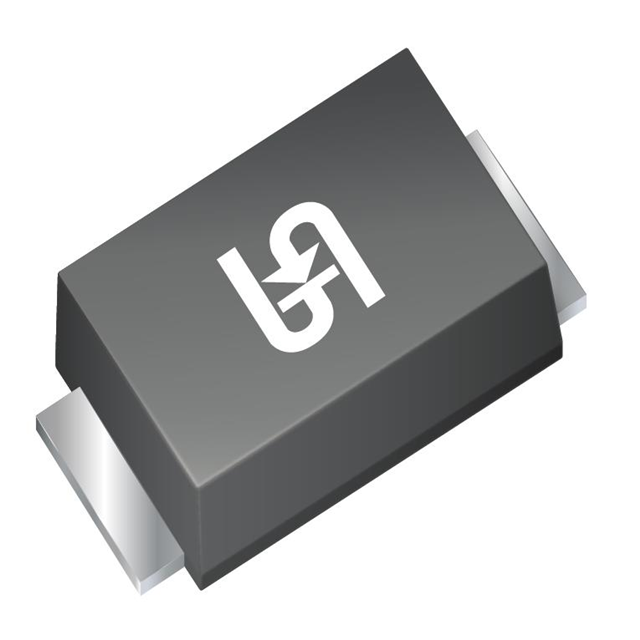

SS120 Real Image1 SS120 Real Image2
Same model may have multiple batches, images only for reference.
SS120 Real Image1 SS120 Real Image2
SS120 Real Image1 SS120 Real Image2
Same model may have multiple batches, images only for reference.

SS120

Part No SS120
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 1A DO214AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Capacitance @ Vr, F 31pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367008-SS120
Ultra Librarian 3D Model Ultra Librarian SS120 CAD Model

Description

The 1367008-SS120 is a single diode rectifier from Taiwan Semiconductor Corporation.

  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 200V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 950mV @ 1A
  • Speed: Standard Recovery >500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 100μA @ 200V
  • Capacitance @ Vr, F: 31pF @ 4V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AC (SMA)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Operating Temperature - Junction: -55°C ~ 150°C
