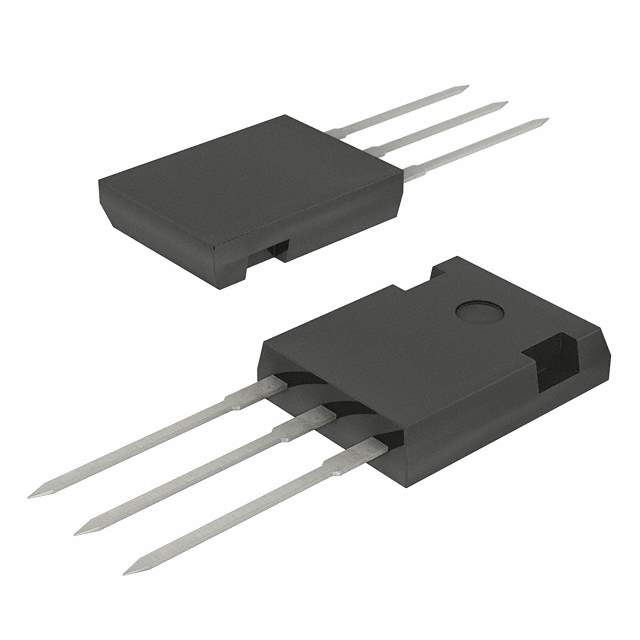

The HER3006PT C0G is a dual high-efficiency rectifier diode array manufactured by Taiwan Semiconductor. This device consists of two fast recovery rectifier diodes connected in a common cathode configuration. It is designed for applications requiring efficient rectification and fast switching speeds, particularly in power supplies and high-frequency circuits.

Applications:

• Output rectification in switching mode power supplies (SMPS)
• Freewheeling diode arrays
• High-frequency inverters
• DC-DC converters
• Polarity protection circuits

Features:

• Dual diode configuration
• Fast reverse recovery time
• High efficiency
• Low forward voltage drop
• High surge current capability

Benefits:

• Simplified circuit design
• Improved efficiency
• Reduced power dissipation
• Enhanced circuit protection

Specifications:

The HER3006PT C0G features a repetitive peak reverse voltage (VRRM) of 600V, a forward current (IF) of 3A per diode (6A total), and a fast reverse recovery time (trr) typically around 75ns. The surge current capability (IFSM) is around 125A. It is commonly packaged in a TO-220AB package. The Taiwan Semiconductor datasheet provides detailed specifications, including thermal resistance and detailed electrical characteristics, essential for designing efficient power circuits. This dual diode array offers a compact and efficient solution for high-frequency rectification needs.
