Same model may have multiple batches, images only for reference.

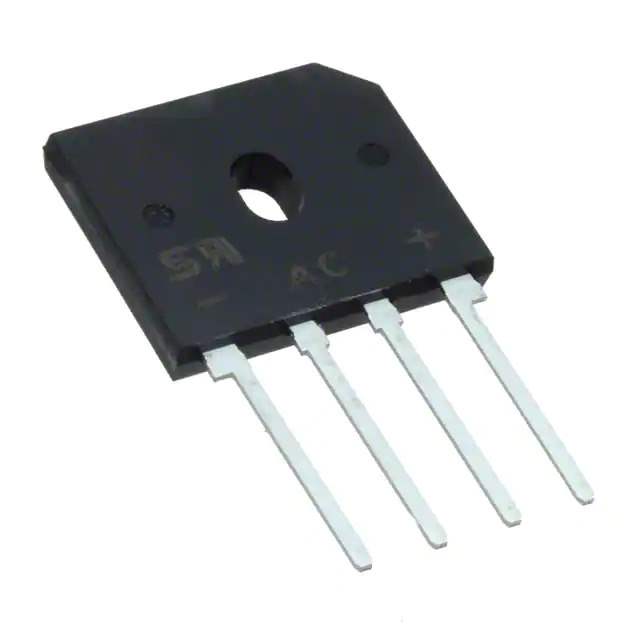

GBU807 Real Image
Same model may have multiple batches, images only for reference.

GBU807

Part No GBU807
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 8A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU807
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594352-GBU807
Ultra Librarian 3D Model Ultra Librarian GBU807 CAD Model

Description

The GBU807 is a single-phase bridge rectifier diode that is designed for use in discrete semiconductor products.

  • Current Rating: 8 A
  • Maximum Forward Voltage: 1 V @ 1.5 A
  • Maximum Reverse Voltage: 1 kV
  • Reverse Leakage Current: 5 µA @ 1000 V
  • Mounting: Through Hole
  • Package: 4-SIP, GBU
  • Operating Temperature: -55°C to 150°C
  • Status: Active
  • Manufacturer: Taiwan Semiconductor
  • Standard Package: 20 pcs
