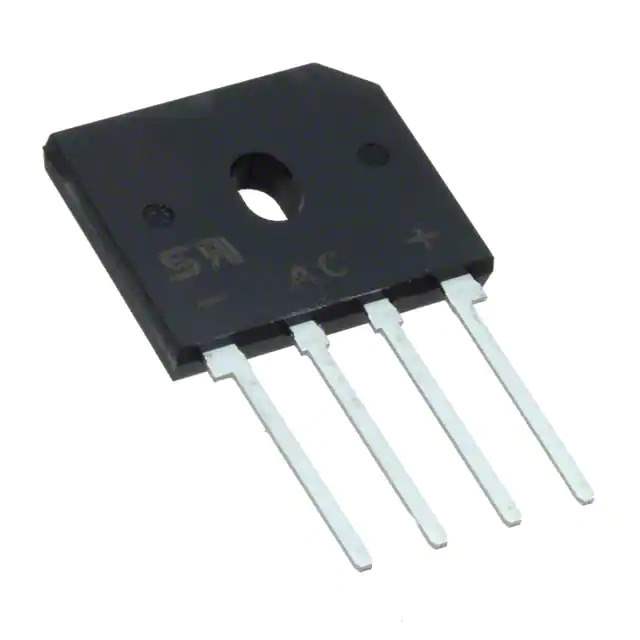

GBU805 Real Image
Same model may have multiple batches, images only for reference.

GBU805

Part No GBU805
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 8A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU805
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594351-GBU805
Ultra Librarian 3D Model Ultra Librarian GBU805 CAD Model

Description

The GBU805 is a single phase bridge rectifier designed for discrete semiconductor applications.

  • Maximum Peak Reverse Voltage: 600V
  • Average Rectified Current: 8A
  • Forward Voltage Drop: 1V @ 2A
  • Reverse Leakage Current: 5µA @ 600V
  • Package: Through-Hole, 4-SIP, GBU
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Status: Active
  • Standard Package: 20 pieces
