Same model may have multiple batches, images only for reference.

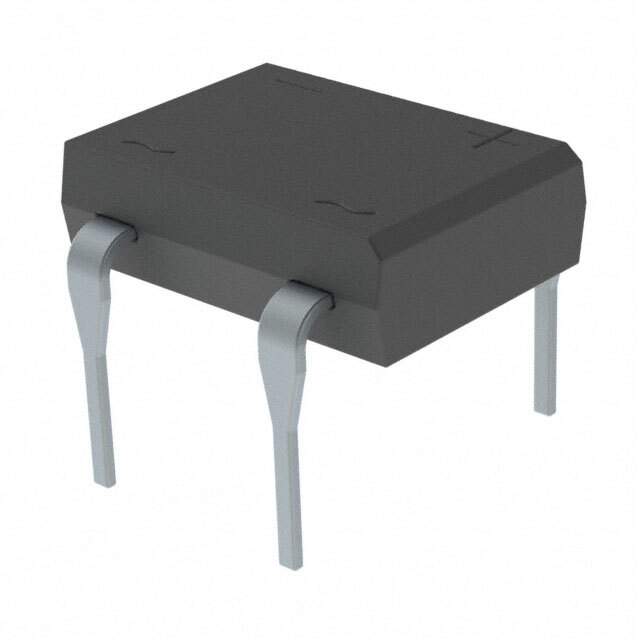

DBL107G Real Image
Same model may have multiple batches, images only for reference.

DBL107G

Part No DBL107G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 1A 1000V DBL / Bridge Rectifier Single Phase Standard 1 kV Through Hole DBL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor Corporation
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 2 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package DBL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1801-DBL107G,,DBL107G C1,DBL107G C1G,1801-DBL107GINACTIVE
Standard Package 5,000
Win Source Part Number 1055235-DBL107G
Ultra Librarian 3D Model Ultra Librarian DBL107G CAD Model

Description

The Taiwan Semiconductor Corporation DBL107G is a diode bridge rectifier that is part of the discrete semiconductor products category.

  • Current Rating: 1A
  • Voltage Rating: 1.1V @ 1A
  • Reverse Leakage Current: 2 microamperes @ 1000V
  • Peak Reverse Voltage: 1kV
  • MSL Level: 1 (unlimited)
