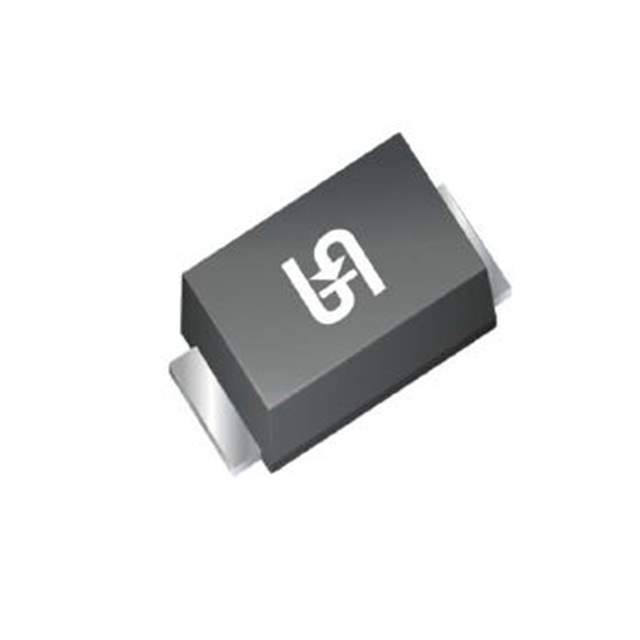

The BZD27C20P RU is a Transient Voltage Suppressor (TVS) diode manufactured by Taiwan Semiconductor. It is designed to protect sensitive electronic components from voltage transients induced by lightning, electrostatic discharge (ESD), and inductive switching. This diode is part of the BZD27 series, known for its robust performance and reliability in overvoltage protection applications.

Applications

• Industrial Control Systems: Protection against voltage surges in industrial machinery and control equipment.
• Telecommunications Equipment: Safeguarding sensitive components in telecom infrastructure, such as routers, switches, and base stations.
• Automotive Electronics: Protecting automotive ECUs and other electronic systems from voltage transients.
• Power Supplies: Ensuring stable operation of power supplies by suppressing voltage spikes and surges.
• Consumer Electronics: Protecting sensitive circuitry in devices like TVs, set-top boxes, and audio equipment.

Features

• High Surge Capability: Capable of withstanding high surge currents without degradation.
• Fast Response Time: Quickly clamps transient voltages to protect downstream components.
• Low Clamping Voltage: Limits the voltage across protected components to a safe level.
• Excellent Clamping Ratio: Provides effective overvoltage protection across a wide range of transient conditions.
• Compact Package: Allows for easy integration into space-constrained designs.

Benefits

• Enhanced System Reliability: Prevents damage to sensitive components from voltage transients, increasing system uptime.
• Reduced Downtime: Minimizes the risk of equipment failure due to overvoltage events, reducing downtime and maintenance costs.
• Improved Product Lifespan: Protects electronic components from degradation caused by voltage surges, extending product lifespan.
• Simplified Design: Easy to implement in circuit designs, requiring minimal external components.
• Cost-Effective Protection: Provides a cost-effective solution for protecting against overvoltage events.

Additional Details

The BZD27C20P RU has a stand-off voltage of approximately 20V, which means it starts conducting when the voltage exceeds this level. The 'C' designation indicates that it is a bidirectional TVS diode, meaning it can suppress voltage transients in both positive and negative directions. Key electrical characteristics include peak pulse power dissipation, forward voltage, and clamping voltage at a specific test current. The device is typically available in a DO-214AC (SMA) package. The 'RU' suffix may indicate specific packaging or compliance standards. It's crucial to consult the datasheet to get precise specifications like the exact clamping voltage, peak pulse current, operating temperature range, and storage temperature range. This information is essential for ensuring the diode is used within its safe operating limits.
