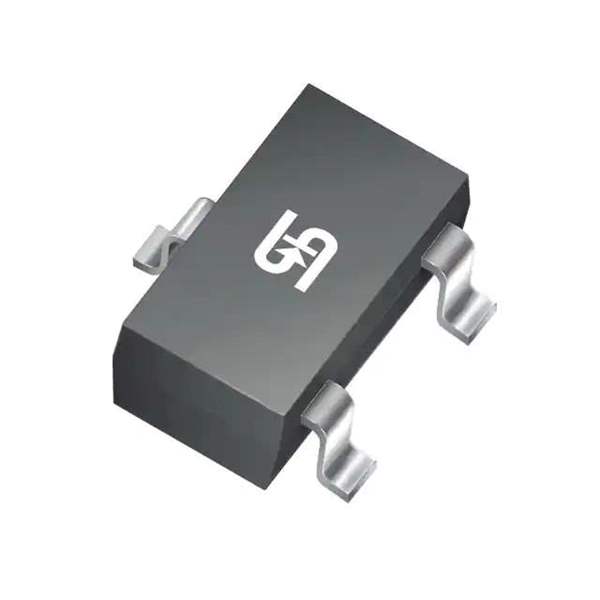

BC807-16W Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 700mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 100mA, 1V
Power - Max 200 mW
Frequency - Transition 80MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Base Product Number BC807
Standard Package 6,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 569304-BC807-16W
Ultra Librarian 3D Model Ultra Librarian BC807-16W CAD Model

Description

The 569304-BC807-16W is a PNP bipolar transistor designed for various electronic applications.

  • Maximum Power Dissipation: 200mW
  • Collector-Emitter Breakdown Voltage: 45V
  • Maximum Collector Current: 500mA
  • Vce Saturation: 700mV @ 50mA (base current) and 500mA (collector current)
  • Collector Cutoff Current: 100nA
  • Package: SC-70 (SOT-323)
  • Mounting: Surface mount applications
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Status: Active product
