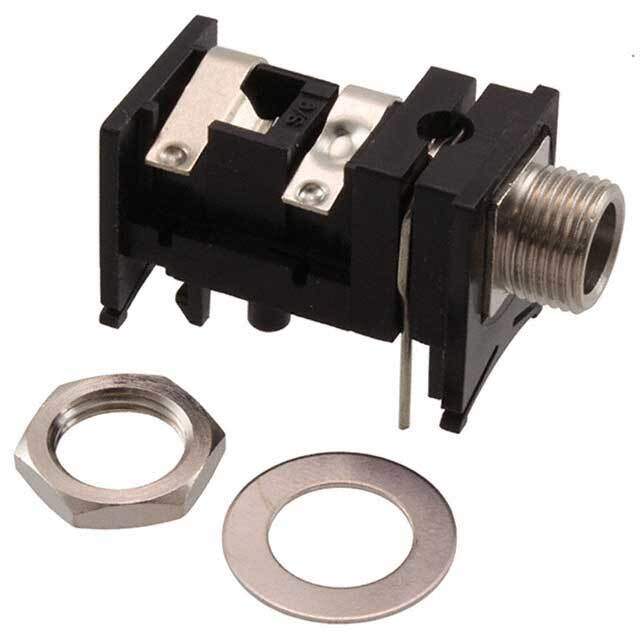

SN49C12B Real Image
Same model may have multiple batches, images only for reference.

SN49C12B

Part No SN49C12B
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Audio Connectors
Mfr Switchcraft Inc.
Series SN49C
Package Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.250" (6.35mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Contact Material - Plating Nickel
Body Color Black
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material Thermoplastic
Contact Material Brass
Thread Size 3/8"-32
Base Product Number SN49C1
Other Names SC2003,SN49C12B
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294280-SN49C12B
Ultra Librarian 3D Model Ultra Librarian SN49C12B CAD Model

Description

The Switchcraft Inc. SN49C12B is a female phone jack connector that has three conductors and three contacts.

  • Connector Type: Phone Jack
  • Termination: Solder
  • Package: Bulk
  • Pieces Included: 3 (1 connector, 1 nut, and 1 washer)
  • Contact Material: Brass
  • Contact Plating: Nickel
  • Industry-Recognized Mating Diameter: 6.35mm (0.250", 1/4") - headphone
  • Mounting Type: Through Hole, Right-Angle
