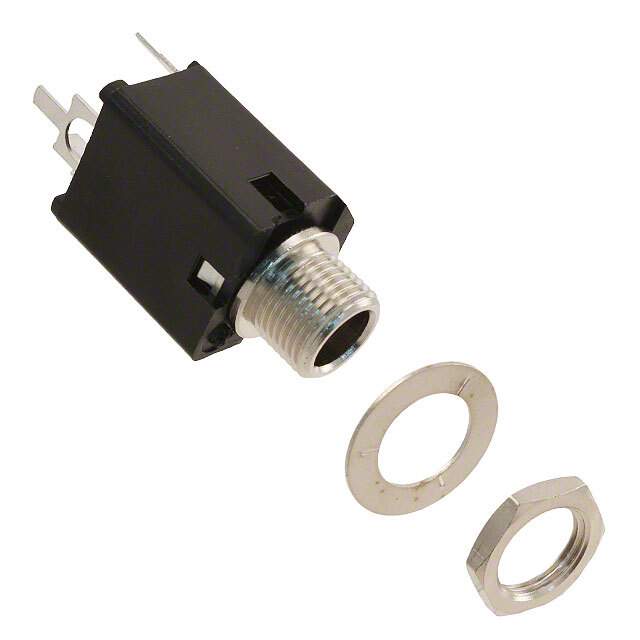

S112BPCX Real Image
Same model may have multiple batches, images only for reference.

S112BPCX

Part No S112BPCX
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Audio Connectors
Mfr Switchcraft Inc.
Series Hi-D® S11*
Package Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 5.23mm (0.206")
Actual Diameter 0.210" (5.33mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Panel Mount, Through Hole
Termination Solder
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Contact Material - Plating Nickel
Body Material Copper Alloy
Body Color Silver, Black
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material Polyester, Glass Filled
Contact Material Copper Alloy
Base Product Number S11
Other Names S112BPCX,SC2550
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294290-S112BPCX
Ultra Librarian 3D Model Ultra Librarian S112BPCX CAD Model

Description

The Switchcraft Inc. S112BPCX is a female phone jack connector that is categorized under Connectors and Interconnects, specifically under Barrel - Audio Connectors.

  • Win Source Part Number: 1294290-S112BPCX
  • Features: Mounting hardware and thread lock
  • Connector Type: Phone Jack
  • Termination: Solder
  • Package: Bulk
  • Gender: Female
  • Shielded: No
  • Housing Material: Polyester and glass filled
  • Contact Material: Copper alloy
  • Contact Material Plating: Nickel
  • Conductors: 3
  • Contacts: 3
  • Internal Switch(s): None
  • Industry Recognized Mating Diameter: 5.23mm (0.206")
  • Actual Diameter: 0.210" (5.33mm)
  • Signal Lines: Stereo (3 conductor, TRS)
  • Body Color: Silver and black
  • ECCN: EAR99
