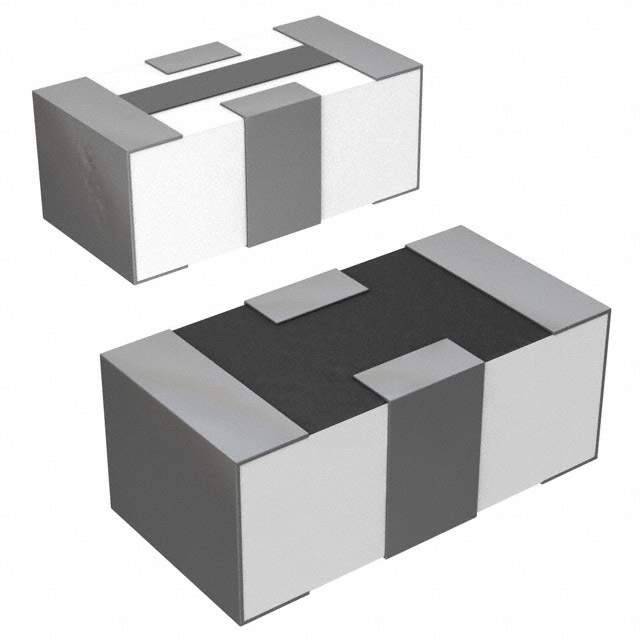

TBF-2012-245-R1 Real Image
Same model may have multiple batches, images only for reference.

TBF-2012-245-R1

Part No TBF-2012-245-R1
Manufacturer Susumu
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER THIN FILM 2.45GHZ SMD
Datasheet
TBF-2012-245-R1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Susumu
Packaging Reel - TR
Status Active
Type Band Pass
Technology Thin Film
Number of Channels 1
Center / Cutoff Frequency 2.45GHz (Center)
Attenuation Value 25dB @ 1.71 to 1.91GHz, 30dB @ 880 to 960MHz
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Bluetooth, GPS, WLAN
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.020" (0.50mm)
Win Source Part Number 104517-TBF-2012-245-R1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TBF-2012-245-R1 CAD Model

Description

The Susumu 104517-TBF-2012-245-R1 is a band pass filter suitable for use in Bluetooth, GPS, and WLAN applications.

  • Center/Cutoff Frequency: 2.45GHz
  • Attenuation: 25dB @ 1.71 to 1.91GHz and 30dB @ 880 to 960MHz
  • Material: Thin film
  • Height: 0.020" (0.50mm)
  • Packaging: Reel
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Category: Filters
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: Balance
