Same model may have multiple batches, images only for reference.

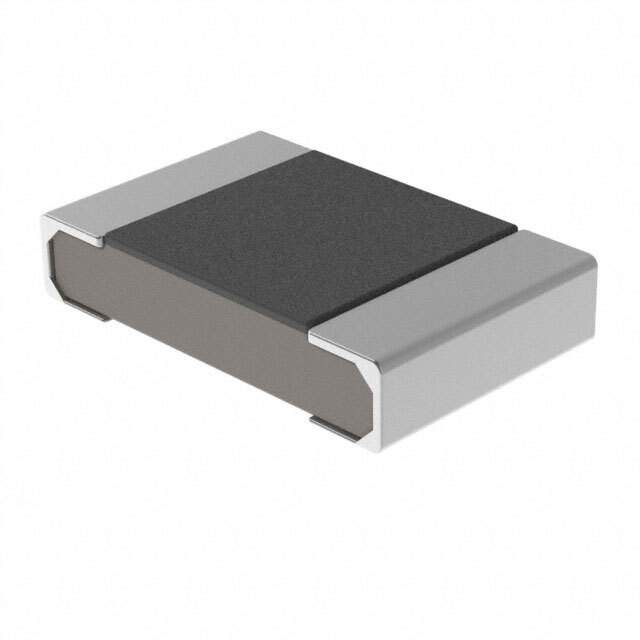

RG2012P-105-B-T5 Real Image
Same model may have multiple batches, images only for reference.

RG2012P-105-B-T5

Part No RG2012P-105-B-T5
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 0.1% 1/8W 0805 / 1 MOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Datasheet
RG2012P-105-B-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Susumu
Series RG
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±0.1%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.020" (0.50mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349387-RG2012P-105-B-T5
Ultra Librarian 3D Model Ultra Librarian RG2012P-105-B-T5 CAD Model

Description

The Susumu RG series chip resistor is a thin film resistor with a 1 mOhms resistance and 0.125W power rating.

  • Resistance: 1 mOhms
  • Power (Watts): 0.125W
  • Operating Temperature: -55°C ~ 155°C
  • Tolerance: ±0.1%
  • Package / Case: 0805 (2012 Metric)
  • Packaging: Tape & Reel (TR)
  • Standard Package: 5000
  • Series: RG
  • Category: Resistors
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • Features: Anti-Sulfur, Automotive AEC-Q200
  • Temperature Coefficient: ±25ppm/°C
  • Height - Seated (Max): 0.020" (0.50mm)
  • Size / Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
