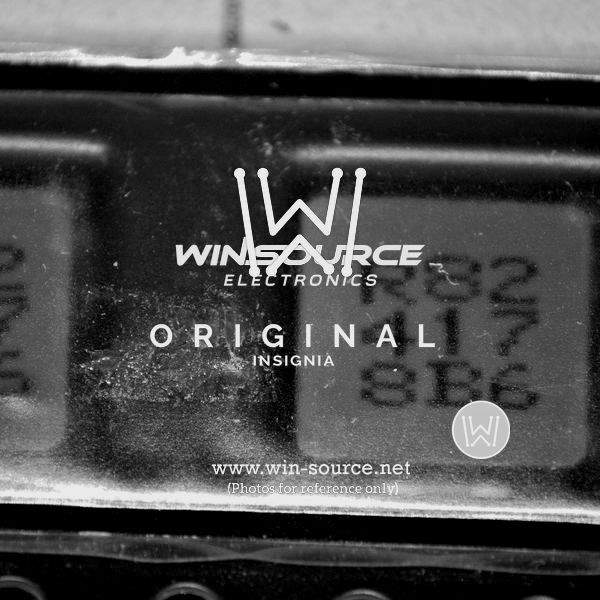

PCMC063T-R82MN Real Image PCMC063T-R82MN real image14938
Same model may have multiple batches, images only for reference.
PCMC063T-R82MN Real Image PCMC063T-R82MN real image14938
PCMC063T-R82MN Real Image PCMC063T-R82MN real image14938
Same model may have multiple batches, images only for reference.

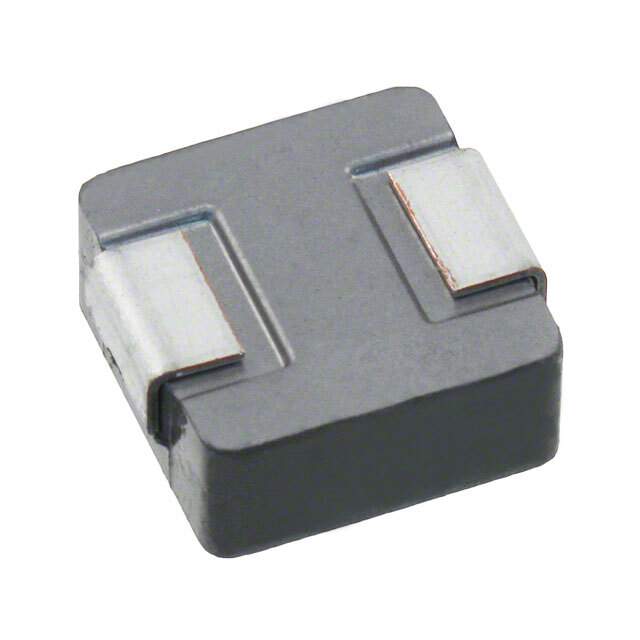

PCMC063T-R82MN

Part No PCMC063T-R82MN
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 820NH 13A 8 MOHM SMD / Power Choke Wirewound 0.82uH 20% 13A 0.008Ohm DCR T/R
Datasheet
PCMC063T-R82MN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Series PCMC
Packaging Reel package
Part Status Obsolete(EOL)
Inductance 820nH
Tolerance ±20%
Current Rating 13A
Current - Saturation 24A
Shielding Unshielded
DC Resistance (DCR) 8 mOhm Max
Mounting SMD
Package Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Win Source Part Number 791593-PCMC063T-R82MN
Popularity Medium
Supply and Demand Status Limited
Family Name PCMC
Introduction Date October 23, 2008
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PCMC063T-R82MN CAD Model

Description

The Susumu PCMC063T-R82MN is a nonstandard package, unshielded inductor from Susumu.

  • Inductance: 820nH
  • Current Rating: 13A
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • DC Resistance: 8 mOhm max
  • Current Saturation: 24A
  • Series: PCMC
  • Status: Obsolete (EOL)
  • Package Dimensions: 0.287" L x 0.260" W (7.30mm x 6.60mm), Height 0.118" (3.00mm) Seated
  • Alternative Parts: SPI0603HW-R82MA, MHL-0703-R82TM, CTIHLP2712F-R82M, SCIHP0724-R82M
