Same model may have multiple batches, images only for reference.

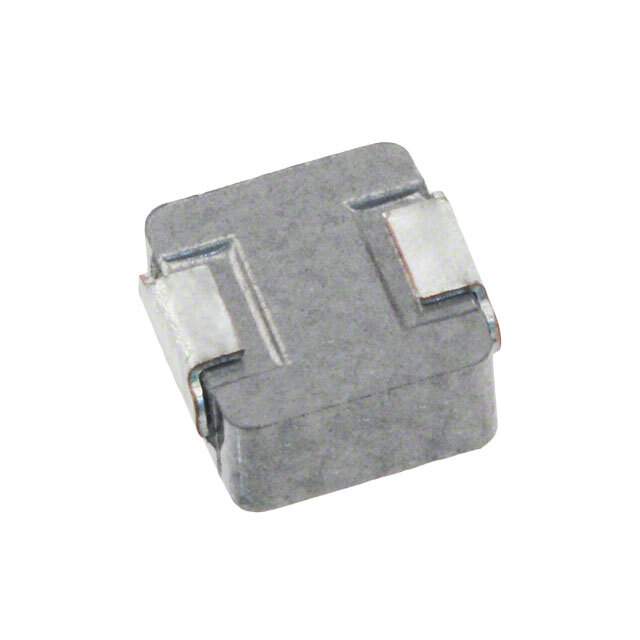

PCMB103T-R36MS Real Image
Same model may have multiple batches, images only for reference.

PCMB103T-R36MS

Part No PCMB103T-R36MS
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 360NH 23A 1.6 MOHM SMD / Power Choke Wirewound 0.36uH 20% 23A 0.0016Ohm DCR T/R
Datasheet
PCMB103T-R36MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Series PCMB
Packaging Reel package
Inductance 360nH
Tolerance ±20%
Current Rating 23A
Current - Saturation 28A
Shielding Unshielded
DC Resistance (DCR) 1.6 mOhm Max
Mounting SMD
Package Nonstandard
Dimension 0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Maximum) 0.130" (3.30mm)
Win Source Part Number 791586-PCMB103T-R36MS
Popularity Medium
Supply and Demand Status Limited
Family Name PCMB
Introduction Date October 23, 2008
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PCMB103T-R36MS CAD Model

Description

The Susumu PCMB103T-R36MS is a high-quality inductor with a nonstandard package. It has an inductance of 360nH and a current rating of 23A.

  • Inductance: 360nH
  • Current Rating: 23A
  • Shielding: unshielded
  • Tolerance: ±20%
  • Mounting: surface mount
  • DC Resistance: 1.6 mOhm Max
  • Dimensions: 0.453" L x 0.394" W (11.50mm x 10.00mm)
  • Height: 0.130" (3.30mm)
  • Applications: Inductors, Coils, and Chokes
