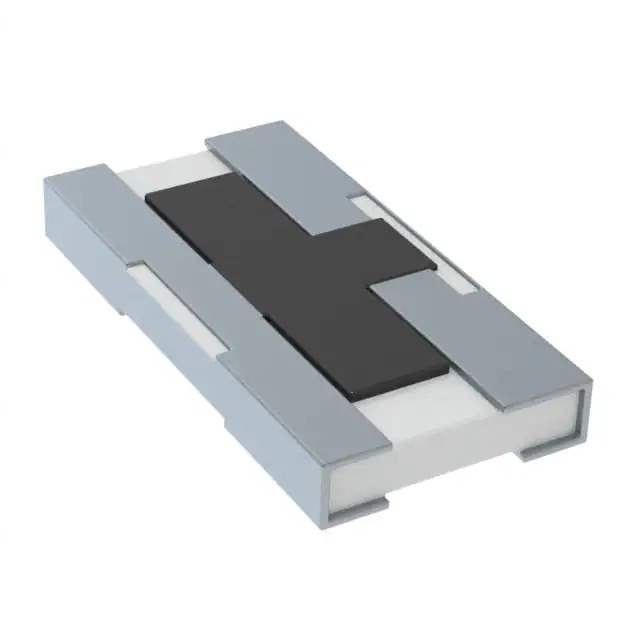

PAT1632-C-1DB-T1 Real Image
Same model may have multiple batches, images only for reference.

PAT1632-C-1DB-T1

Part No PAT1632-C-1DB-T1
Manufacturer Susumu
Catalog Attenuators
Description CHIP ATTENUATOR, 1DB, 50O, 125MW
Datasheet
PAT1632-C-1DB-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Susumu
Series PAT
Package Tape & Reel
Product Status Active
Attenuation Value 1dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 125mW
Impedance 50 Ohms
Package / Case 1206 (3216 Metric)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 930014-PAT1632-C-1DB-T1
Ultra Librarian 3D Model Ultra Librarian PAT1632-C-1DB-T1 CAD Model

Description

The PAT series attenuator from Susumu is a high-quality RF and wireless component.

  • Impedance: 50 Ohms
  • Power Rating: 125mW
  • Frequency Range: 0 Hz to 3 GHz
  • Attenuation Value: 1dB
  • Packaging: Tape and reel format
  • Standard Package: 1000 pcs
  • Size: 1206 (3216 Metric)
  • ECCN: EAR99
  • Product Status: Active product
  • REACH: Unaffected by REACH regulations
