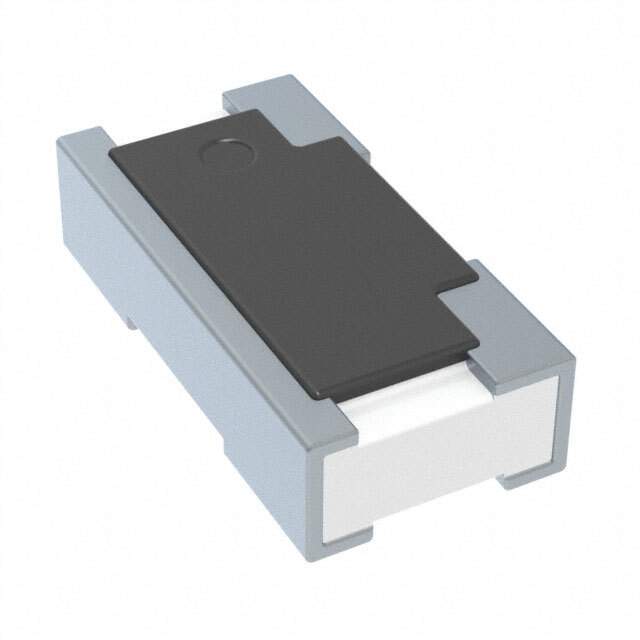

PAT0816-C-2DB-T5 Real Image
Same model may have multiple batches, images only for reference.

PAT0816-C-2DB-T5

Part No PAT0816-C-2DB-T5
Manufacturer Susumu
Catalog Attenuators
Description CHIP ATTENUATOR, 2DB, 50O, 64MW, / RF Attenuators 2dB 0 Hz ~ 10 GHz 50 Ohms 64mW 0603 (1608 Metric)
Datasheet
PAT0816-C-2DB-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Attenuators
Manufacturer Susumu
Packaging Reel - TR
Attenuation Value 2dB
Frequency Range 0 Hz ~ 10 GHz
Power (Watts) 64mW
Impedance 50 Ohms
Case / Package 0603 (1608 Metric)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Part Number 408-2182-2,408-2182-1,408-2182-6
Standard Package 5,000
Win Source Part Number 1326159-PAT0816-C-2DB-T5
Ultra Librarian 3D Model Ultra Librarian PAT0816-C-2DB-T5 CAD Model

Description

The Susumu PAT0816-C-2DB-T5 attenuator is designed for use in RF/IF and RFID applications.

  • Impedance: 50 Ohms
  • Attenuation: 2dB
  • Power Rating: 64mW
  • Frequency Range: 0 Hz to 10 GHz
  • Package: 0603 (1608 metric)
  • Standard Package Size: 5,000
  • Packaging: Reel - TR
