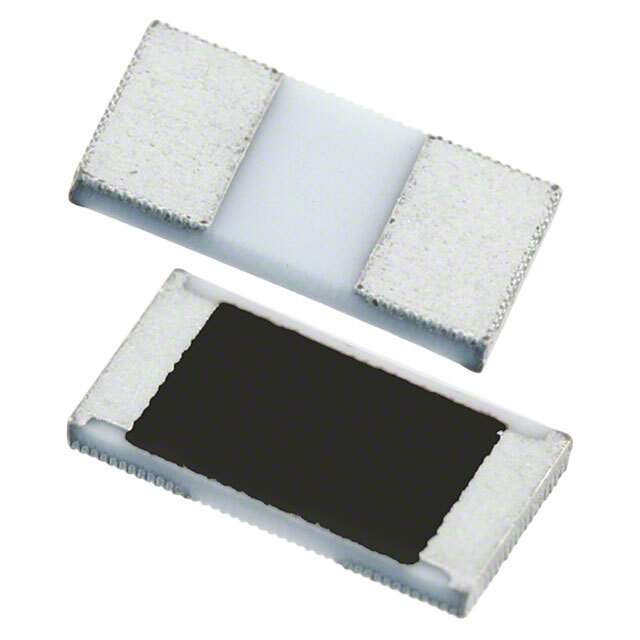

CPA2512Q4R70FS-T10 Real Image
Same model may have multiple batches, images only for reference.

CPA2512Q4R70FS-T10

Part No CPA2512Q4R70FS-T10
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7 OHM 1% 16W 2512 / 4.7 Ohms ±1% 16W Chip Resistor 2512 (6432 Metric) Moisture Resistant Thin Film
Datasheet
CPA2512Q4R70FS-T10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Susumu
Series CPA
Package Tape & Reel
Resistance 4.7 Ohms
Tolerance ±1%
Power (Watts) 16W
Composition Thin Film
Features Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.248" L x 0.126" W (6.30mm x 3.20mm)
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350111-CPA2512Q4R70FS-T10
Ultra Librarian 3D Model Ultra Librarian CPA2512Q4R70FS-T10 CAD Model

Description

The Susumu CPA2512Q4R70FS-T10 is a chip resistor with a resistance of 4.7 Ohms and a power rating of 16W. It has a tolerance of ±1% and a temperature coefficient of ±50ppm/°C.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Resistance: 4.7 Ohms
  • Power Rating: 16W
  • Package / Case: 2512 (6432 Metric)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Maximum Seated Height: 0.031" (0.80mm)
  • Operating Temperature: -55°C ~ 155°C
  • Moisture Resistant: Yes
  • Manufacturer: Susumu
