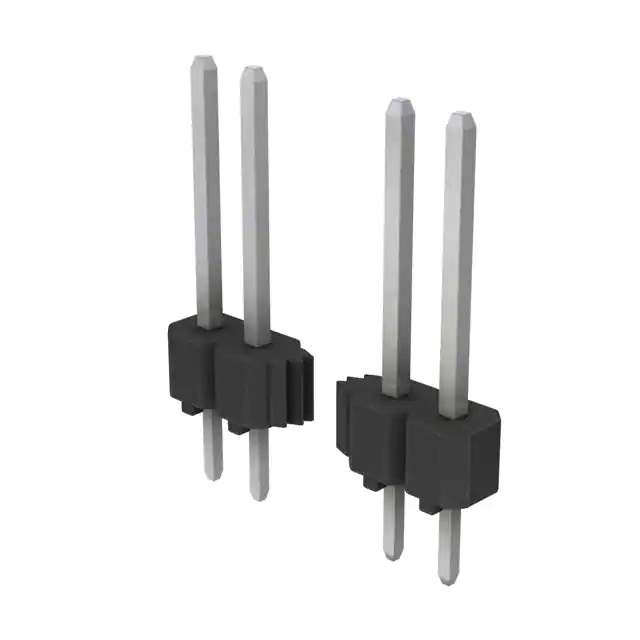

MDF7-5P-2.54DSA(55)

Name: MDF7-5P-2.54DSA(55)
Brand: Hirose Electric Co Ltd
SKU: 926912
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MDF7-5P-2.54DSA(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 5POS 2.54MM / Connector Header Through Hole 5 position 0.100" (2.54mm)
Datasheet	MDF7-5P-2.54DSA(55) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	MDF7
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.394" (10.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.612" (15.54mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250V
Standard Package	100 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	926912-MDF7-5P-2.54DSA(55)
Ultra Librarian 3D Model	Ultra Librarian MDF7-5P-2.54DSA(55) CAD Model

Alternative Products

Description

The MDF7-5P-2.54DSA(55) is a male pin header connector from the MDF7 series manufactured by Hirose Electric Co Ltd.

Positions: 5
Package: Bulk
Quantity: 100 pieces
Application: Board-to-Board
Fastening Type: Push-Pull
Voltage Rating: 250V
Current Rating: 3A
Flammability Rating: UL94 V-0
Temperature Range: -35°C to 85°C
