Same model may have multiple batches, images only for reference.

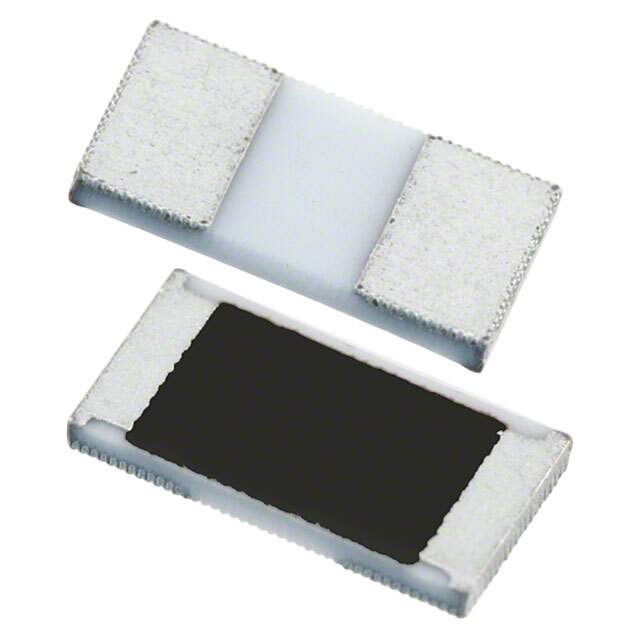

CPA2512E1000FS-T10 Real Image
Same model may have multiple batches, images only for reference.

CPA2512E1000FS-T10

Part No CPA2512E1000FS-T10
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 1% 16W 2512 / 100 Ohms ±1% 16W Chip Resistor 2512 (6432 Metric) Moisture Resistant Thin Film
Datasheet
CPA2512E1000FS-T10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Susumu
Series CPA
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 16W
Composition Thin Film
Features Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.248" L x 0.126" W (6.30mm x 3.20mm)
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 2
Other Names CPA2512E1000FST10,CPA25E100DKR,CPA25E100TR,CPA25E100CT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1236355-CPA2512E1000FS-T10
Ultra Librarian 3D Model Ultra Librarian CPA2512E1000FS-T10 CAD Model

Description

The CPA2512E1000FS-T10 is a thin film chip resistor from Susumu.

  • Resistance: 100 Ohms
  • Power Rating: 16W
  • Tolerance: ±1%
  • Temperature Coefficient: ±25ppm/°C
  • Applications: Automotive, industrial, and telecommunications
  • Moisture Resistance: Yes
  • Package: Tape and reel
  • Package Size: 2512 (6432 Metric)
  • Device Package: 2512
  • Operating Temperature: -55°C to 155°C
  • Dimensions: 0.248" L x 0.126" W (6.30mm x 3.20mm)
  • Composition: Thin film
  • Terminations: 2
