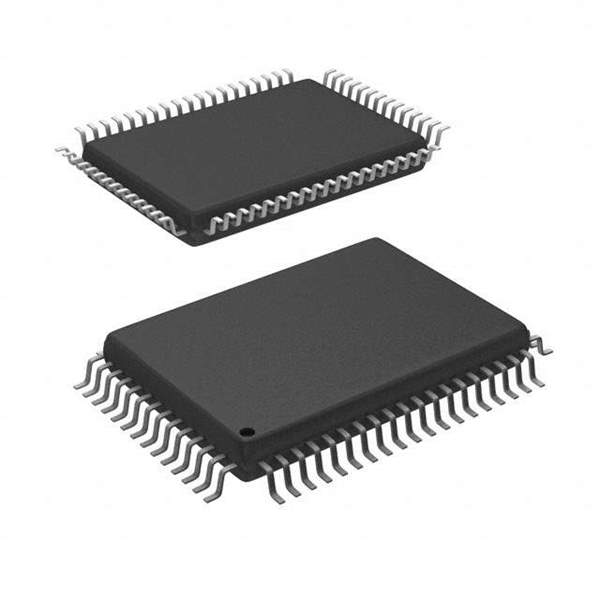

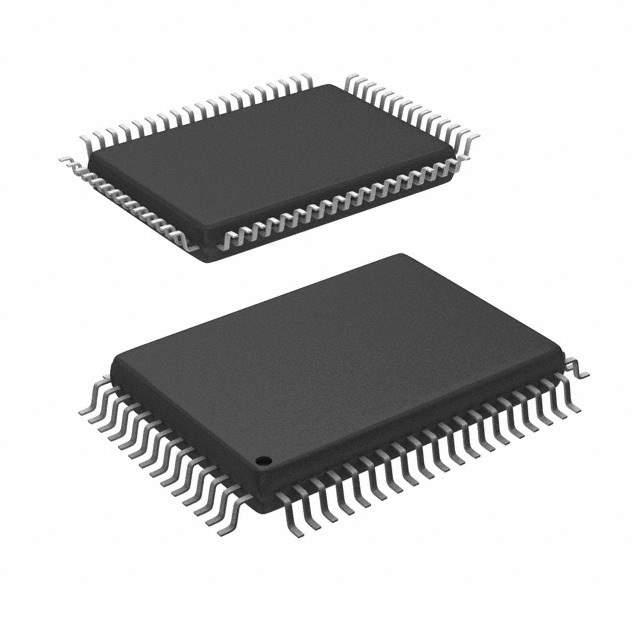

The Supertex HV633PG is a high voltage display driver designed to drive electroluminescent (EL) lamps and other capacitive loads. It is part of Supertex's family of display drivers, known for their efficiency and reliability in various display applications.

Applications:

• Electroluminescent (EL) Displays: Driving EL panels in various applications such as dashboards, signage, and consumer electronics.
• Vacuum Fluorescent Displays (VFD): Driving VFDs in applications such as automotive displays and industrial equipment.
• Capacitive Load Driving: General-purpose driving of capacitive loads requiring high voltage.
• Backlighting: Providing backlighting for LCDs and other display technologies.

Features:

• High Voltage Output: Designed to generate high voltage levels required for driving EL lamps (typically up to 220V).
• Low Supply Voltage: Operates from a low supply voltage, typically 3V to 5.5V.
• Integrated Oscillator: Includes an internal oscillator for generating the driving frequency.
• Adjustable Frequency and Voltage: Provides external pins for adjusting the driving frequency and voltage.
• Low Quiescent Current: Minimizes power consumption when the display is not active.
• Short Circuit Protection: Incorporates short circuit protection to prevent damage to the driver and the EL lamp.
• Small Package: Available in compact packages like DIP or SOIC for space-constrained applications.

Benefits:

• Efficient EL Lamp Driving: Provides efficient and reliable driving of EL lamps with minimal power consumption.
• Adjustable Output: Allows for fine-tuning of the display brightness and contrast.
• Protection Features: Integrated short circuit protection ensures reliable operation and prevents damage.
• Compact Size: Small package options enable integration into space-constrained applications.
• Simplified Design: Integrated oscillator and other features simplify the design process.

Additional Details:

The HV633PG typically utilizes an external inductor and capacitor to generate the required high voltage. The driving frequency can be adjusted by changing the value of an external resistor connected to the oscillator pin. The output voltage can be adjusted by changing the supply voltage or using an external potentiometer. The device is designed to minimize electromagnetic interference (EMI) and is suitable for use in sensitive applications. The operating temperature range typically extends from -40°C to +85°C. Proper thermal management is essential, especially when driving high power EL lamps. The HV633PG is a cost-effective solution for driving EL lamps and other capacitive loads in a wide range of applications.
