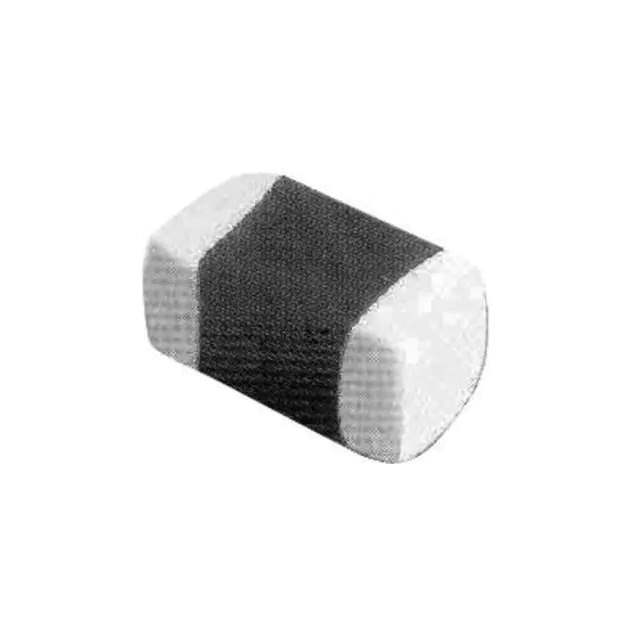

MPH160809SR47MT Real Image
Same model may have multiple batches, images only for reference.

MPH160809SR47MT

Part No MPH160809SR47MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 470NH 1.1A 187MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sunlord
Series MPH
Package Tape & Reel
Product Status Active
Type Multilayer
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 187mOhm Max
Frequency - Self Resonant 180MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 850911-MPH160809SR47MT
Ultra Librarian 3D Model Ultra Librarian MPH160809SR47MT CAD Model

Description

The Sunlord MPH160809SR47MT is a multilayer fixed inductor from the MPH series.

  • Shielded: Yes
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Inductance: 470 nH
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 187mOhm
  • Current Rating: 1.1A
  • Operating Temperature Range: -55°C to 125°C
  • Package: Tape & reel
  • Standard Package Quantity: 5,000 pcs
  • Status: Active
