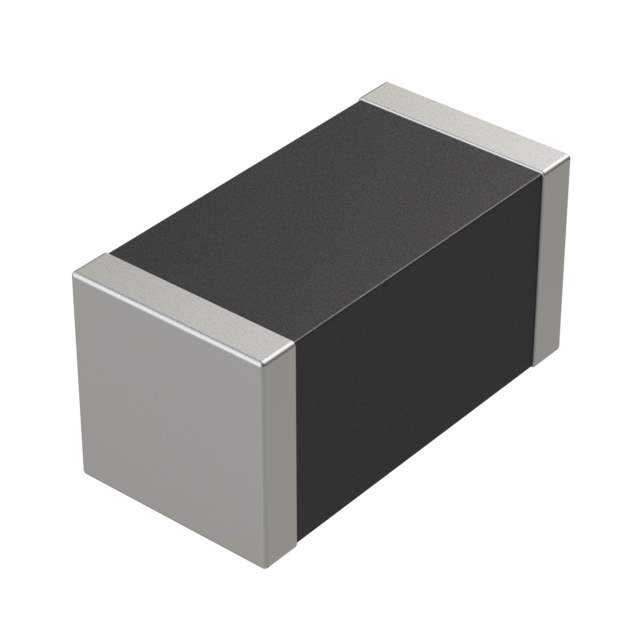

EPZ4030U560-10R0T Real Image
Same model may have multiple batches, images only for reference.

EPZ4030U560-10R0T

Part No EPZ4030U560-10R0T
Manufacturer Sunlord
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 5625%OHM 1612 1LN / 56 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1612 (4030 Metric) 10A 4mOhm
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Shenzhen Sunlord Electronics Co., Ltd.
Packaging Reel - TR
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 56 Ohms @ 100 MHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 4mOhm
Temperature Range - Operating -55°C ~ 125°C
Case / Package 1612 (4030 Metric)
Mounting Surface Mount
Height (Max) 0.071" (1.80mm)
Size / Dimension 0.157" L x 0.118" W (4.00mm x 3.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 3442-EPZ4030U560-10R0TTR
Standard Package 4,000
Win Source Part Number 1329143-EPZ4030U560-10R0T
Ultra Librarian 3D Model Ultra Librarian EPZ4030U560-10R0T CAD Model

Description

The EPZ4030U560-10R0T is a ferrite bead and chip filter integrated circuit manufactured by Shenzhen Sunlord Electronics Co., Ltd.

  • Filter Type: Power Line
  • Impedance: 56 Ohms @ 100 MHz
  • DC Resistance (DCR) (Max): 4mOhm
  • Size/Dimension: 0.157" L x 0.118" W (4.00mm x 3.00mm)
  • Package: 1612 (4030 Metric)
  • Standard Package: 4,000
  • Current Rating (Max): 10A
  • Mounting Type: Surface Mount
  • Temperature Range - Operating: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
