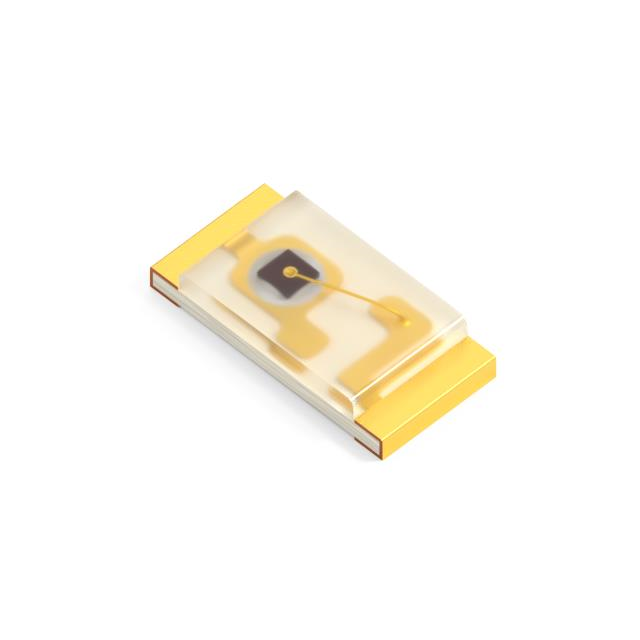

Same model may have multiple batches, images only for reference.
XZMDKT53W-6 SunLED – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

XZMDKT53W-6

Part No XZMDKT53W-6
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD
Datasheet
XZMDKT53W-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category OptoelectronicsLED Indication - Discrete
Mfr SunLED
Part Status Active
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 108mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 2-SMD
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.28mm
Base Product Number XZMDKT53
Ultra Librarian 3D Model Ultra Librarian XZMDKT53W-6 CAD Model
