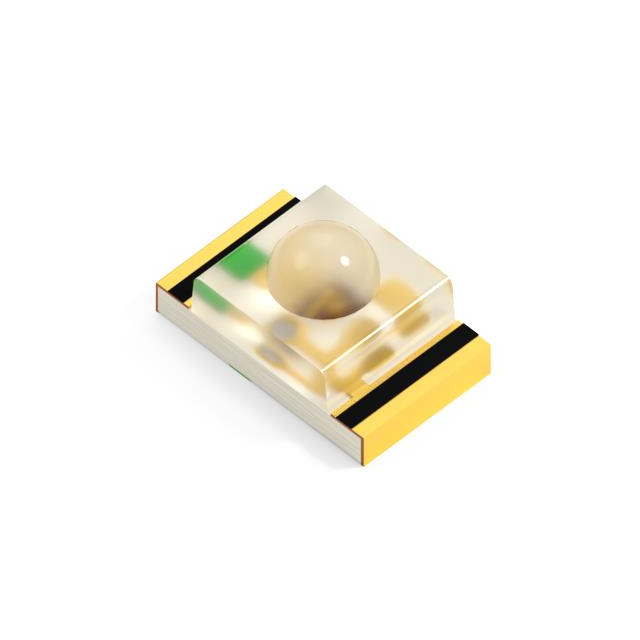

XZMDK54W-8 Real Image
Same model may have multiple batches, images only for reference.

XZMDK54W-8

Part No XZMDK54W-8
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED RED CLEAR CHIP SMD / Red 630nm LED Indication - Discrete 1.95V 0805 (2012 Metric)
Datasheet
XZMDK54W-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr SunLED
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1640mcd
Lens Style Round with Domed Top
Lens Size 0.80mm Dia
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Viewing Angle 40°
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 0805 (2012 Metric)
Supplier Device Package Chip LED
Dimension 2.00mm L x 1.25mm W
Height (Max) 1.20mm
Base Product Number XZMDK54
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1497-1431-1,1497-1431-2,1497-1431-6
Standard Package 3,000
Win Source Part Number 1203497-XZMDK54W-8
Ultra Librarian 3D Model Ultra Librarian XZMDK54W-8 CAD Model

Description

The SunLED XZMDK54W-8 is a red LED indication-discrete component that has a viewing angle of 40° and a millicandela rating of 1640mcd.

  • Viewing Angle: 40°
  • Millicandela Rating: 1640mcd
  • Voltage-Forward (Vf): 1.95V
  • Wavelength-Dominant: 630nm
  • Current-Test: 20mA
  • Height: 1.20mm
  • Mounting Type: SMD (SMT)
  • Supplier Device Package: Chip LED
  • Dimensions: 2.00mm L x 1.25mm W
  • Lens Style: Round with a domed top
  • Lens Size: 0.80mm Dia
  • Lens Transparency: Clear
  • Standard Package: 3,000
